Description
3M™ Diamond Grade™ DG³ Pre-Striped Barricade Sheeting Series 444R
Highlights
- 3M™ Diamond Grade™ DG³ Pre-Striped Barricade Sheeting Series 444/446 is a super high efficiency, full-cube retroreflective sheeting
- Provides long lasting durability with impact and gouge resistance
- Exceeds ASTM D4956 Type XI
Series 444/446 is pre-striped for use on work zone traffic control barricades
Typical properties
Details
|
Adhesive Features |
Solvent-free |
|
Adhesive Type |
Pressure-sensitive |
|
Availability |
Non-Standard |
|
Construction |
Microprismatic |
|
Imaging Method |
Digital Print, Overlay/Electronic Cut, Screenprint |
|
Industries |
Automotive, Transportation |
|
Liner |
Yes |
|
Performance Level |
Diamond Grade |
|
Performance Tier |
DG3 |
|
Product Code |
444L,446R,444R,446L |
|
Product Color |
Orange, White |
|
Product Series |
444/446 |
|
Product Usage |
Barricades, Barriers, Channelizers, Traffic control devices |
|
Reflective Technology |
Full-cube Prismatic, Microprismatic |
|
Specifications Met |
ASTM D4956 Type XI CWZ |
|
Substrate |
Aluminum, Plastic, Wood |
Dimensions and Classifications
|
Overall Length (Imperial) |
50 yd, 100 yd |
|
Overall Length (Metric) |
45.72 m, 91.44 m |
|
Overall Width (Imperial) |
4 in, 7.75 in, 8 in, 12 in, 48 in |
|
Overall Width (Metric) |
101.6 mm, 152.4 mm, 196.85 mm, 203.2 mm, 304.8 mm |
Resources

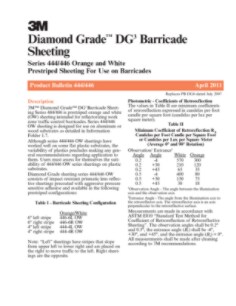

3M™ Diamond Grade™ Barricade Sheeting Series 444/446Bulletins
(PDF , 48KB)
3M™ Diamond Grade™ DG³ Pre-Striped Barricade Sheeting 444R, Orange/White, 4 inch Stripe/Right, Configurable Roll
- 3M ID 7100113181
3M™ Diamond Grade™ DG³ Pre-Striped Barricade Sheeting 444R, Orange/White, 4 inch Stripe/Right, 7.75 in x 100 yd, 1 Roll/Case
- 3M ID 7010390577
- UPC 00051141568669
3M™ Diamond Grade™ DG³ Pre-Striped Barricade Sheeting 444R, Orange/White, 4 inch Stripe/Right, 12 in x 50 yd, 1 Roll/Case
- 3M ID 7010345020
- UPC 00051135992944
