Digi ConnectPort X2 industrial XBee (ZigBee) to et

Description

Digi ConnectPort X2 industrial XBee (ZigBee) to ethernet IP gateway w/(1) RJ45 10/100 port, extra memory, antennas & power supply (US)
X2-Z11-EM-A

ConnectPort X2 gateways benefit from the enhanced management capabilities offered by iDigi Manager Pro™.  This web-based device management system enables remote access and control of your Digi gateways.

 The iDigi® Device Cloud™ platform as a service provides integration of web and mobile applications via iDigi application programming interfaces (APIs), while providing the required reliability and security infrastructure to elastically scale.

ConnectPort X2 products feature an end-to-end development environment based on local customization via the iDigi® Dia framework, allowing for rapid M2M-specific application development on the industry standard Python scripting engine. Digi ESP™ provides an IDE featuring device detection, debugging, compiling and downloading of iDigi Dia/Python code to Digi gateways.
Features

ZigBee to Ethernet/Wi-Fi IP gateways support numerous XBee protocols
Multiple form factors and configuration options
Commercial and industrial grade enclosures
Easy development via iDigi® Dia and Python scripting as part of Digi ESP™ IDE
Available iDigi Application Development Services
Secure, anywhere management using iDigi Manager Pro™

ConnectPort X2 gateways benefit from the enhanced management capabilities offered by iDigi Manager Pro™.  This web-based device management system enables remote access and control of your Digi gateways.  The iDigi® Device Cloud™ platform as a service provides integration of web and mobile applications via iDigi application programming interfaces (APIs), while providing the required reliability and security infrastructure to elastically scale. ConnectPort X2 products feature an end-to-end development environment based on local customization via the iDigi® Dia framework, allowing for rapid M2M-specific application development on the industry standard Python scripting engine. Digi ESP™ provides an IDE featuring device detection, debugging, compiling and downloading of iDigi Dia/Python code to Digi gateways. Documentation PDF Digi ConnectPort X2 Data Sheet PDF Digi wireless routers and gateways feature comparison chart Specifications ConnectPort® X2 Industrial ConnectPort® X2 Commercial General Management HTTP/HTTPS web interface, Password access control, IP service port control, Optional secure enterprise management via iDigi® Device Cloud™ iDigi® Device Cloud™ Protocols UDP/TCP, DHCP, SNMPv1 UDP/TCP, DHCP Total Memory 8 MB Flash, 16 MB RAM 8 MB RAM, 4 MB Flash (User-available memory varies by firmware and OS version) LEDs Ethernet status, Power, ZigBee link/activity Ethernet status, Power, ZigBee link/activity Security SSL tunnels SSL tunnels Dimensions (L x W x H) 5.50 in x 2.75 in x 1.13 in (13.9 cm x 7.0 cm x 2.9 cm); 0.44 lb (0.20 kg) 2.75 in x 3.75 in x 1.25 in (7.0 cm x 9.5 cm x 3.2 cm); 0.20 lb (0.09 kg) Antenna XBee Antenna 4″ dipole; RP-SMA (Center pin – on device: male; on antenna: female) Internal Wi-Fi (optional) 4″ dipole with 2′ cable, tabletop mountable; RP-SMA (Center pin – on device: male; on antenna: female) N/A Interfaces RF ZigBee, 802.15.4 Smart Energy 1.0 certified ZigBee-PRO Ethernet Ports 1 RJ-45 port Physical Layer 10/100Base-T Data Rate and Mode 10/100 Mbps (auto-sensing); Full or half duplex (auto-sensing) Wi-Fi (802.11b/g) Frequency 2.4 GHz N/A Data Rate Up to 11 Mbps w/fallback N/A Modulation DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (11, 5.5 Mbps) N/A Transmit Power 16 dBm typical N/A Receiver Sensitivity -82 dBm @ 11 Mbps N/A Modes Ad-hoc & AP Client Modes only; Access Point Mode not supported N/A Power Requirements Power Input 9-30VDC 5 VDC Power Supply 12 VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included; Extended temperature power supply available separately 5 VDC power supply included Power Consumption Idle: 1.2 W, Max: 3.4 W Idle: 1.2 W, Max: 3.4 W Surge Protection (with included power supply) 4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4 N/A Environmental Operating Temperature -30° C to +70° C (-22° F to +158° F) 0° C to 40° C (32° F to 104° F) Relative Humidity 5% to 95% (non-condensing) Ethernet Isolation 1500VAC min per IEEE802.3/ANSI X3.263 Regulatory Approvals Safety EN60950 N/A Emissions/Immunity CE, FCC Part 15 (Class A) N/A ConnectPort X2 – Side ConnectPort X2 – Side Drivers & Downloads

Documentation

PDF Digi ConnectPort X2 Data Sheet

PDF Digi wireless routers and gateways feature comparison chart

---

Specifications	ConnectPort® X2 Industrial	ConnectPort® X2 Commercial
General
Management	HTTP/HTTPS web interface, Password access control, IP service port control, Optional secure enterprise management via iDigi® Device Cloud™	iDigi® Device Cloud™
Protocols	UDP/TCP, DHCP, SNMPv1	UDP/TCP, DHCP
Total Memory	8 MB Flash, 16 MB RAM	8 MB RAM, 4 MB Flash (User-available memory varies by firmware and OS version)
LEDs	Ethernet status, Power, ZigBee link/activity	Ethernet status, Power, ZigBee link/activity
Security	SSL tunnels	SSL tunnels
Dimensions (L x W x H)	5.50 in x 2.75 in x 1.13 in (13.9 cm x 7.0 cm x 2.9 cm); 0.44 lb (0.20 kg)	2.75 in x 3.75 in x 1.25 in (7.0 cm x 9.5 cm x 3.2 cm); 0.20 lb (0.09 kg)
Antenna
XBee Antenna	4″ dipole; RP-SMA (Center pin – on device: male; on antenna: female)	Internal
Wi-Fi (optional)	4″ dipole with 2′ cable, tabletop mountable; RP-SMA (Center pin – on device: male; on antenna: female)	N/A
Interfaces
RF	ZigBee, 802.15.4	Smart Energy 1.0 certified ZigBee-PRO
Ethernet
Ports	1 RJ-45 port
Physical Layer	10/100Base-T
Data Rate and Mode	10/100 Mbps (auto-sensing); Full or half duplex (auto-sensing)
Wi-Fi (802.11b/g)
Frequency	2.4 GHz	N/A
Data Rate	Up to 11 Mbps w/fallback	N/A
Modulation	DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (11, 5.5 Mbps)	N/A
Transmit Power	16 dBm typical	N/A
Receiver Sensitivity	-82 dBm @ 11 Mbps	N/A
Modes	Ad-hoc & AP Client Modes only; Access Point Mode not supported	N/A
Power Requirements
Power Input	9-30VDC	5 VDC
Power Supply	12 VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included; Extended temperature power supply available separately	5 VDC power supply included
Power Consumption	Idle: 1.2 W, Max: 3.4 W	Idle: 1.2 W, Max: 3.4 W
Surge Protection (with included power supply)	4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4	N/A
Environmental
Operating Temperature	-30° C to +70° C (-22° F to +158° F)	0° C to 40° C (32° F to 104° F)
Relative Humidity	5% to 95% (non-condensing)
Ethernet Isolation	1500VAC min per IEEE802.3/ANSI X3.263
Regulatory Approvals
Safety	EN60950	N/A
Emissions/Immunity	CE, FCC Part 15 (Class A)	N/A

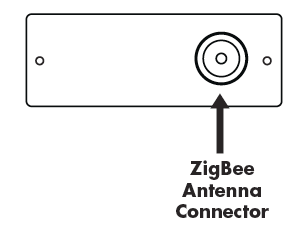

ConnectPort X2 – Side

ConnectPort X2 – Side
