Description
Gerber Non-Transfer Void Security Label Stock Matte Blue
Non-Transfer Void 15” Punched EDGE READY Color 10 Yard 50 Yard Matte Blue P84904A P84905A

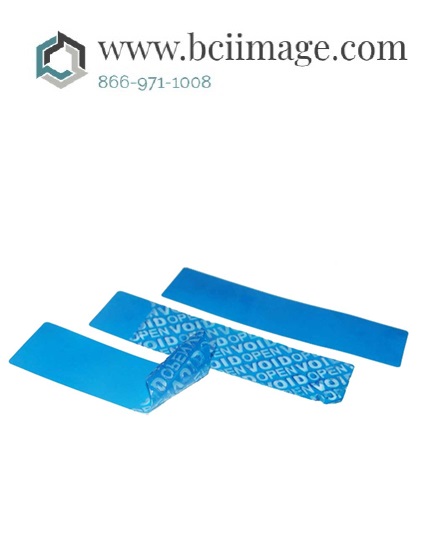

Gerber Non-Transfer Void Security Label Stock is a tamper- evident material designed to produce non-reusable label seals which contain a message of “VOID OPEN” in the face material when removed. Gerber Non-Transfer Void Security Film adhesive leaves no residue when removed within 90 days on many application surfaces, eliminating the time and effort to clean the adhesive left by other types of security labels. The compact “VOID OPEN” message permits manufacture of labels as small as 10mm x 30mm. One-year exterior life.
DESCRIPTION
Gerber Non-Transfer Void Security Label Stock is a matte blue, non-transfer, tamper-evident
material designed to provide a message of “VOID OPEN” in the face material when it is removed.
Removal permanently destroys the face material thereby providing obvious evidence of alteration.
Gerber Non-Transfer Void Security Label Stock adhesive leaves no residue when removed within
90 days on many application surfaces, eliminating the time and effort to remove the adhesive left
by other types of security labels. The compact “VOID OPEN” message permits manufacture of
labels as small as 10mm x 30mm.
Gerber Non-Transfer Void Security Label Stock is an EDGE READY™ Material.
INTENDED APPLICATIONS
The primary function of Gerber Non-Transfer Void Security Label Stock is to provide a nontransferable (non-reusable) label seal by causing the “VOID OPEN” message to appear on the
face stock when removal from the substrate is attempted.
Since no tamper indicating feature is 100% tamper proof, careful consideration must be used
when designing label seals. When the consequences of tampering could be severe, such as injury
or loss of human life or significant monetary loss, these products are not recommended as the
sole means of package or product tamper indication. In these instances, additional methods in
combination with the label should be considered so that the tamper-indicating features are
commensurate with the requirements of the application.
Gerber Non-Transfer Void Security Label Stock may not be suitable for low surface energy
substrates and should always be tested by the user for suitability for specific applications.
Page 2 of 4
Recommended Surfaces:
Bare metal (may leave a residue after 1
week)
Glass (may leave a residue after 1 day)
PVC (may leave a residue after 1 day)
Painted metal
Painted & varnished wood1
Most smooth plastic2
Most non-porous surfaces
Typical Applications:
Windows
Doors
Ballot Boxes
Files and Cabinets
Aircraft: Metal Hatches and Doors
Access Panel for Calibration Settings
Retail Gasoline Dispenser Hatch and Door
1 If a varnished/painted surface is not fully bonded, the finish may be removed when the label is removed. Test in an inconspicuous
area.
2 Not recommended for textured plastic surfaces.
APPLICATION TECHNIQUES
It is recommended that the user test for the presence of the “VOID OPEN” message on every roll
of label seals as they process them, to insure the product quality and consistency. This can be
done by laminating a label seal to an untreated polyester film test surface. The label seal should
be wiped down with a squeegee, allowed to dwell 10 minutes, and then removed to observe the
face stock and the substrate. While this test can be run after 10 minutes dwell, final judgement
should be based on 72 hours dwell at room temperature prior to testing. It is also recommended
that the user test each lot of label seals on the actual application surface to assure the function of
the “VOID OPEN” message.
As care should be taken not to disturb the tamper indicating feature by pre-destructing the “VOID
OPEN” message when manually removing the label from the liner, slowly remove the liner from
the label at a 90°angle.
SUBSTRATE PREPARATION
Before applying your graphic, wash the surface of your substrate with warm water and
detergent. Do not use soaps or other cleaners with lotions or creams as they will leave a
residue. Thoroughly rinse the surface and allow it to completely dry.
Saturate a clean paper towel with a solvent-based cleaner and wipe the substrate surface. Be
certain to follow all manufacturer safety guidelines when using any solvent. Dry the surface with
a lint-free paper towel before the solvent evaporates.
PERFORMANCE LIFE (UNPRINTED)
Gerber Non-Transfer Void Security Label Stock is suitable for both indoor and outdoor
applications. The expected life for outdoor applications is one year minimum, without residue
when removed within 90 days on many application surfaces. In the event there is adhesive
residue, it can be cleaned with a citrus-based household cleaner or isopropyl alcohol.
PRINTING
Use Gerber HP Series 220 settings at 300 x 300 dpi when printing with the GERBER EDGE®,
GERBER EDGE 2, or GERBER EDGE FX™ thermal transfer printing systems.
GerberColor Spot Black (GCS-12), White (GCS-10), and Gray (GCS-31), have been tested and
approved for printing onto Gerber Non-Transfer Void Security Label Stock.
Page 3 of 4
Recommended working environment is as follows:
Operating temperature: 50ºF to 95ºF / 10ºC to 35ºC
Recommended temperature for assured printing accuracy: 68ºF to 78ºF / 20ºC to 26ºC
Operating humidity: 20% to 90% relative humidity, non-condensing (maximum range;
actual range varies by material used)
CUTTING
A 30° SuperSharp blade is recommended for tangential plotters. A 45° blade should be used
with swivel knife plotters. Plotters can be set to full speed. The user should perform a test cut to
determine the ideal tool force setting. Occasional interruption of the VOID OPEN text may occur
at the cut line and is considered normal.
SHELF LIFE AND STORAGE
Use within one year of date of purchase. Store in original packaging under normal conditions of
70°F (21°C) and 50% relative humidity. To minimize the effect of humidity, package cut and
printed material in polyethylene bags. Low density polyethylene (2-4 mils) can help prevent
humidity penetration.
MAINTENANCE
To clean printed graphics, use a mild, non-abrasive soap with a soft cloth or sponge. Avoid
using alcohol-based cleansers or soaps containing grit or abrasives.
PHYSICAL PROPERTIES
Thickness – Film 40±4 microns (.002 inch)
Thickness – Adhesive 33±4 microns (.001 inch)
Film Color / Type Matte Blue PET
Adhesive Color / Type Transparent Acrylic
Liner Color / Type White Glassine Paper
Removability Gerber Non-Transfer Void is removable within 90 days with no
residue on recommended application surfaces, and is intended to
exhibit a noticeable OPEN VOID message upon removal.
GENERAL SPECIFICATIONS
Non-Residue Feature This feature is most effective when the service temperature is
between 0F and 120F. For temperatures outside of this range, the
non-residue feature may be impaired and revert to conventional
security label that leaves adhesive residue.
Minimum Application
Temperature
+10F.
Service Temperature -40F to +200F, however, at service temperatures below 0F or
above 120F, the non-residue feature may be disrupted; the film will
still show tamper evidence when removed, but it may leave an
adhesive residue on the surface.
Page 4 of 4
RELATED LITERATURE
Refer to Product Bulletins of relevant foils for product-specific handling, production, and finishing
information.
CONTACT INFORMATION
For help with questions concerning Gerber products, please call your distributor or Gerber
Customer Service at 1-800-222-7446 or (860) 871-8082. Visit us on the Internet at
http://www.gerbertechnology.com/signage to learn more about our many other foils, materials and
equipment.
