Description
Gerber Security Label Stock 2 Mil Chrome Silver
Chrome Silver P63033A P63034A
2 mil Label Stock 15” Punched EDGE READY

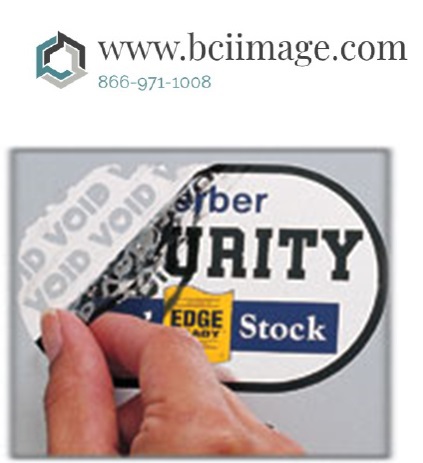

This 2-mil product was developed for use with the Gerber EDGE for production of identification markings with tamper- evident protection. Once printed and applied, the word VOID appears, on both the applied surface and the material, if the label is removed.
DESCRIPTION
Gerber Security films are 2-mil, dimensionally stable, polyester-based films that resist tearing
and abrasion. They have been formulated for use with the GERBER EDGE®, GERBER EDGE
2®, and GERBER EDGE FX thermal transfer printing systems, in conjunction with
GerberColor Foils. They are coated with a tamper-evident adhesive system and are backed
with a 90-lb lay-flat liner.
Gerber Security Label Stock is available in chrome-silver and white.
INTENDED APPLICATIONS
Gerber Security films are ideally suited for a wide variety of commercial and industrial label
applications in which tamper resistance, heat resistance and dimensional stability are required.
When labels printed on Gerber Security Label Stock are adhered to substrates such as
stainless steel, acrylic, or polypropylene, a “VOID” pattern will be left behind when the material
is removed. The removed label can not be reapplied. The user should determine the suitability
of all substrates prior to actual application.
Activation of the tamper-evident feature will occur approximately two hours after application at
60°F to 75°F (16°C to 24°C). This feature will become permanently non-functional when
continuously exposed to temperatures above 104°F (40°C).
Due to the mirror-like finish of the chrome silver, it is not suitable for the scanning of bar code
information. We suggest using the white label stock for barcodes.
Only solid fills should be printed on this material. The minimum recommended stroke width is
.009 in (.23 mm).
Page 2 of 5
These films are not intended for backlit applications or applications where petrochemical
exposure may occur. If petrochemical exposure is anticipated, refer to the section below on
protecting graphics.
APPLICATION TECHNIQUES
Dry application methods should be used with Gerber Security Label Stock and panels should be
butted. Gerber standard tack application tape is required for all EDGE-printed graphics.
SUBSTRATE PREPARATION
Before applying your graphic, wash the surface of your substrate with warm water and
detergent. Do not use soaps or other cleaners with lotions or creams as they will leave a
residue. Thoroughly rinse the surface and allow it to completely dry.
Saturate a clean paper towel with a solvent-based cleaner and wipe the substrate surface. Be
certain to follow all manufacturer safety guidelines when using any solvent. Dry the surface with
a lint-free paper towel before the solvent evaporates.
If applying to glass, solvent wipe the surface with a 2 to 1 mixture of water and isopropyl
alcohol. Glass temperatures can vary across the surface. These temperature variations can
produce stresses which may cause the glass to break. Use caution when applying to glass.
Some polycarbonate substrates may weaken when certain vinyl films are applied to them.
Because of this possibility, the user will need to determine if safety items such as helmets,
safety shields, and some windshields are compatible with their vinyl’s adhesive.
Many paint systems (e.g. two-part urethane) and some polycarbonate substrates will outgas if
they are not fully cured. Outgassing can cause permanent bubbling in most films; substrates
should be tested for outgassing prior to final application.
PERFORMANCE LIFE (UNPRINTED)
Gerber Security Labels have an expected exterior durability of up to two years when applied
vertically.
Performance statements are based upon field experience and exposure tests conducted
throughout the United States. Substrate selection, exposure angle, environmental conditions,
and maintenance of markings will affect actual performance. Continuous exposure in regions
that experience maximum sunny days will result in decreased performance. Extreme
temperature cycling over a short time may result in film cracking. This product is not
recommended for horizontal applications.
PRINTING
If your software material selection palette does not have Gerber Security Label Stock, use
LexEdge™ II normal print settings.
GerberColor Spot (GCS), GerberColor Process Pro CMYK (GCP), GerberColor Medal (GCM),
and GerberColor Transparent (GCT) Series Foils can be used to print onto Security Label
Stock.
Recommended working environment is as follows:
Operating temperature: 50ºF to 95ºF / 10ºC to 35ºC
Page 3 of 5
Recommended temperature for assured printing accuracy: 68ºF to 78ºF / 20ºC to 26ºC
Operating humidity: 20% to 90% relative humidity, non-condensing (maximum range;
actual range varies by material used)
CUTTING
Gerber Security Films can be cut on any 15-inch EDGE-compatible sprocketed plotter. A 30°
SuperSharp blade is recommended. Plotters can be set to full speed.
The user should perform a test cut to determine the ideal tool force setting.
PROTECTING GRAPHICS
Gerber Technology offers products that are designed to protect vinyl and printed graphics.
Gerber Guard manufactured by 3M is a durable, dimensionally stable, glossy vinyl
overlaminate. This film has a petrochemical-resistant construction and is intended to be used
when markings may be exposed to petrochemical spillage and/or severe handling conditions.
Gerber UVGuard is a custom-formulated, 1-mil, clear, extremely durable polyvinyl fluoride
(PVF) laminating film designed to further expand the resistance to weathering of printed
graphics for up to five years.
Gerber UVGuard™ 9 manufactured by 3M is a 2-mil, glossy, clear, mildew-resistant, polyvinyl
fluoride laminating film with a petrochemical-resistant adhesive system. It is designed to further
expand the resistance to weathering of printed graphics up to nine years. Gerber UVGuard 9
has the highest protection from UV fade.
Gerber StrikeGuard™ is an 8.0-mil, clear, glossy overlaminate film designed for a variety of
applications. This heavy-duty overlaminate film is ideal for the protection of graphics, up to two
years, and is especially beneficial where printed graphics experience severe handling and
forceful impact. Gerber StrikeGuard is not recommended in applications that require
petrochemical protection or where additional UV or vandal resistance is desired.
Abrasion Guard SPF (Sign Protection Formula) is a clear, top-coat GerberColor Finishing
Series (GCF) Foil designed for use with EDGE® Series thermal transfer printing systems, to
protect graphics from moderate contact and exposure to harmful effects of UV rays. It has an
expected performance life of up to five years (when printed by itself). When applied as a
protective overprint on other GerberColor Foils, Abrasion Guard SPF will extend the life of the
base color by up to 30%.
SHELF LIFE AND STORAGE
Apply film within one year of receipt. Printed graphics should also be applied within one year.
Film and printed graphics (with or without premask) should be kept in a clean area free from
excessive moisture and direct sunlight. Maintain temperature at 70°F (21°C) and humidity at
50%.
Use a paper interleaf between layers of stacked or rolled printed materials. Do not stack printed
graphics face to face.
Page 4 of 5
MAINTENANCE
To clean printed graphics, use a mild, non-abrasive soap with a soft cloth or sponge. Avoid
using alcohol-based cleansers or soaps containing grit or abrasives
PHYSICAL PROPERTIES
Thickness 2.4 to 2.5 mils with adhesive
Film Color Chrome silver
Adhesive Pressure sensitive
Adhesive Color Clear
Liner 90-lb layflat
Tensile Strength N/A
Elongation 0
Dimensional Stability No measurable shrinkage
Application Temp 32°F to 100°F (0°C to 38°C)
Removal Temp N/A
Operating Temp -40°F to 104°F (-40°C to 40°C)
CHEMICAL RESISTANCE (UNPRINTED)
Chemical Agent Result
Household Cleaners No effect
Mild acids No effect
Motor oil No effect
Water No effect
RELATED LITERATURE
Refer to Product Bulletins of relevant foils and materials for product-specific handling,
production, and finishing information.
CONTACT INFORMATION
For help with questions concerning Gerber products, please call your distributor or Gerber
Customer Service at 1-800-222-7446 or (860) 644-1551. Visit us on the Internet at
www.gerbertechnology.com/signage to learn more about our many other foils, materials and
equipment.
Page 5 of 5
