Belkin 2-Port Single Head DP Modular Secure KVM Switch PP4.0 W/ Remote – Black

Description

2-Port Single Head DP Modular Secure KVM Switch PP4.0 W/ Remote

Features

• Designed for NIAP PP PSD 4.0 compliance
• Video support for up to 4K (3840×2160), @30Hz refresh
• Optional DP, mDP, DPMST, HDMI, DVI, VGA, and USB-C cables – host and console
• Modular form factor for maximizing desk space
• Supports up to two host computers
• Support one display for the user
• Included remote-control unit
• Included host and console cables
• Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

Compatibility

• Black

What’s in the Box

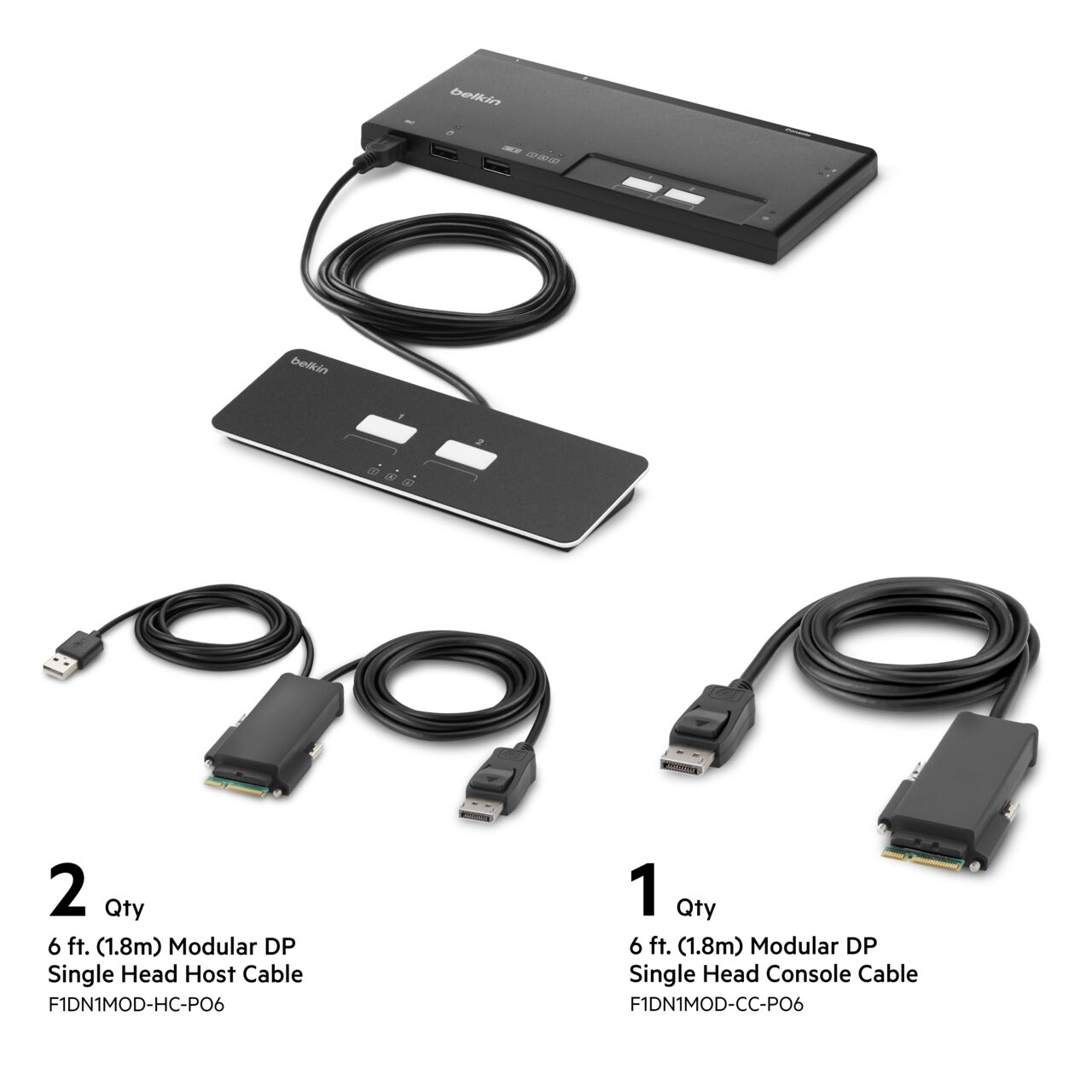

• Belkin F1DN102MOD-BA-4 Modular Secure 2-Port, Single Monitor Switch Base Unit
• Belkin Modular Secure KVM Series 2-Channel Remote Control

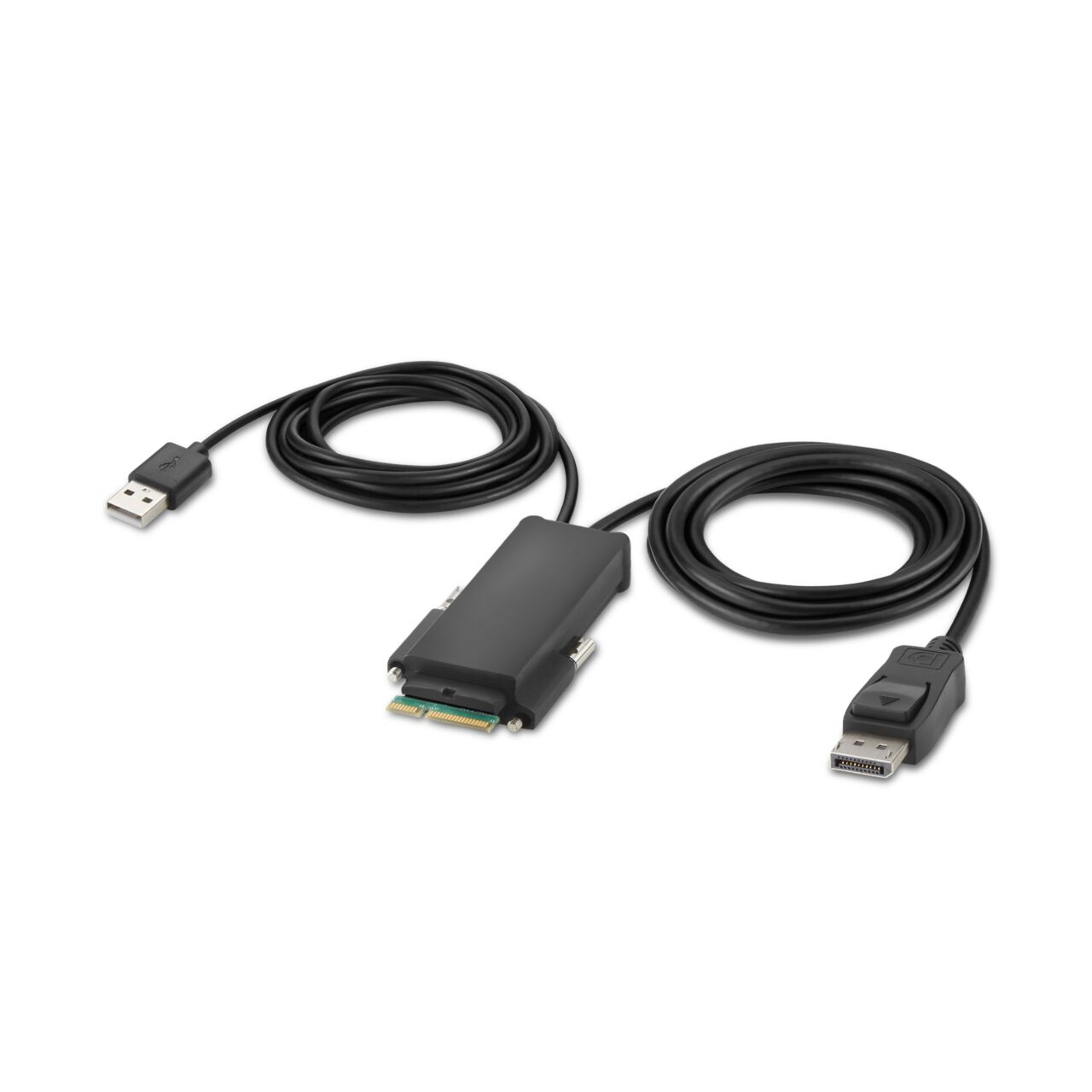

• Belkin 2x F1DN1MOD-HC-P06 DisplayPort™ Single Head Host Cables, 6ft

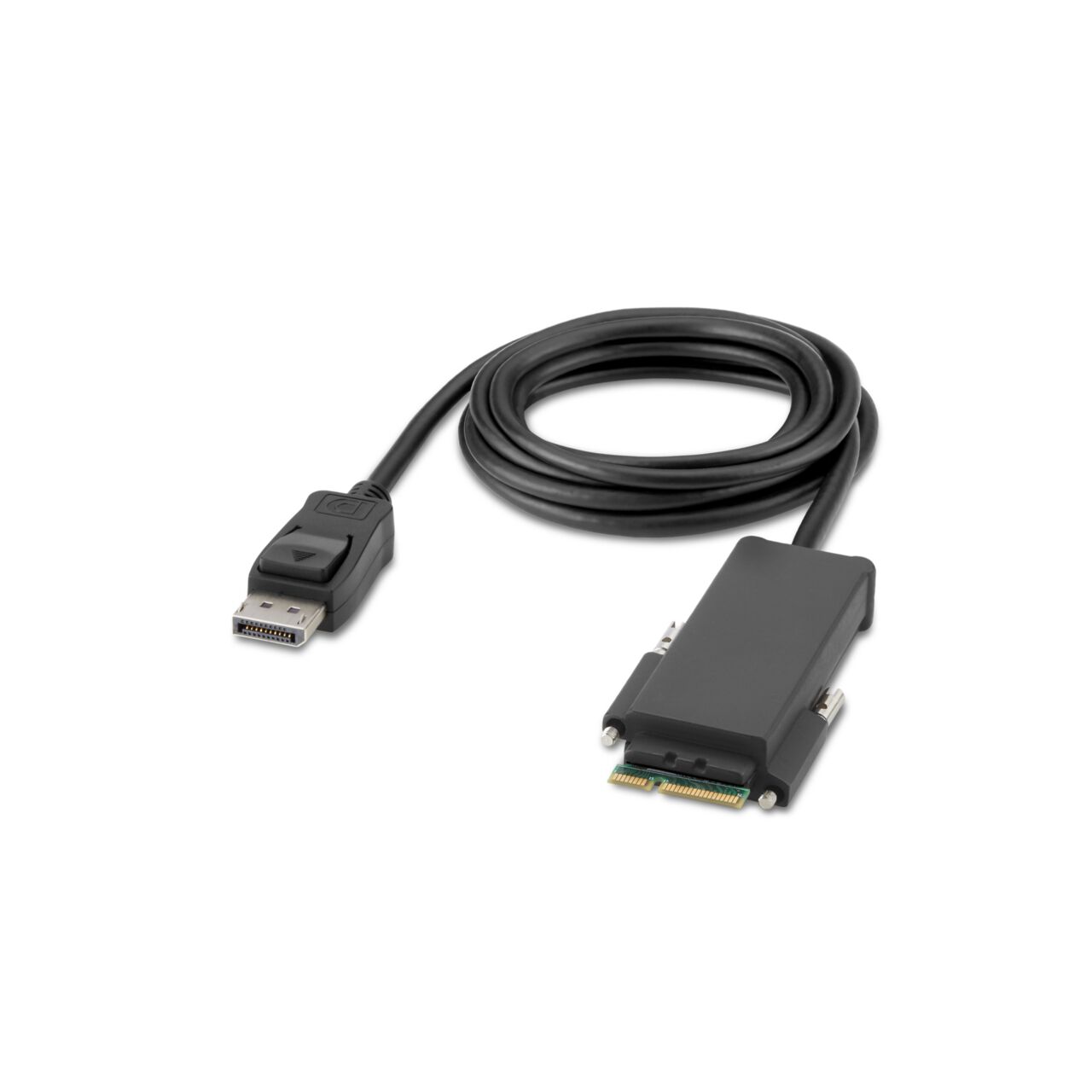

• Belkin 1x F1DN1MOD-CC-P06 DisplayPort™ Single Console Cable, 6ft
• 12V, 2.5A Universal Power Supply with Worldwide Adapters
• Port Naming and Enclave Coloring Labels
• Quick Start Guide and Compliance Documentation

Specifications

• Brand: Belkin
• Manufacturer Part Number: F1DN102MOD-PP-4
• Dimensions: 13.2 x 5.7 x 6.2 in
• Weight: 3.2 lb
• Certifications: FCC Class A UL CE RoHS ICES RCM
• Console Ports: 1, Single Monitor
• Display Connection: DisplayPort
• Display Type: DisplayPort
• External Power: Yes
• Form Factor: Desktop or Remote Mount
• Host Ports: 2
• Housing Type: Diecast Aluminum
• Indicator Light Status: Port Selected EDID Keyboard Mouse CAP Lock NUM Lock SKRL Lock
• Keyboard Input: 1
• Keyboard/Mouse Connections: 2
• Keyboard Type: USB
• KVM Maximum Resolution Supported: 4K@30hz
• Local Console Interfaces: 1, Single Monitor
• Maximum Resolution: 4K@30hz
• Mouse Input: 1
• Mouse Type: USB
• PC Ports: 2
• Power Rating: 12VDC 2.5A
• Power Supply Included: Yes
• Power Supply Type: External
• Remote Control Included: Yes
• Supported Audio Formats: Digital via Video Connection
• Supported Video Formats: DisplayPort
• TAA Compliant: Yes
• Input Voltage (AC): 100-240
• AC Plug Style: Worldwide Interchangable Mains Connector
• Ports: 1 Keyboard, 1 Monitor, 1 Mouse, 1 Remote Control, 2 Computers
• Category: Belkin Products
