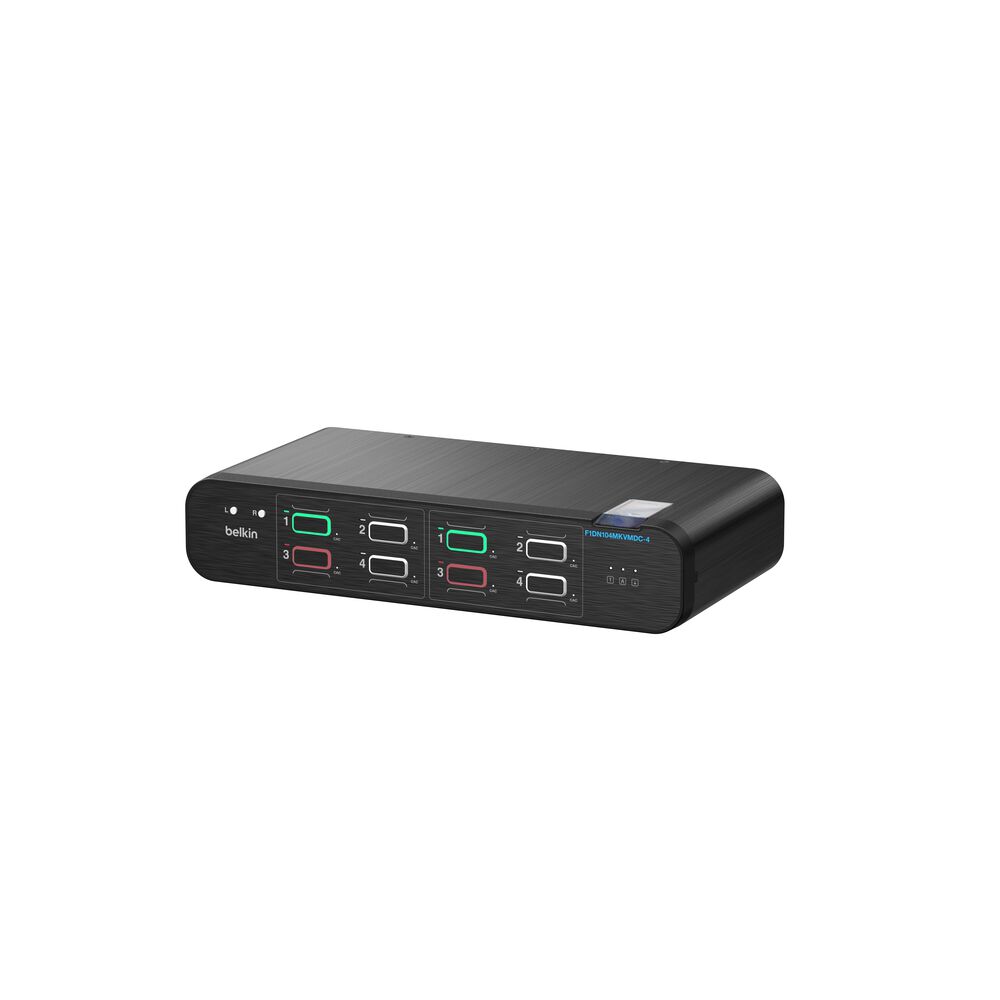

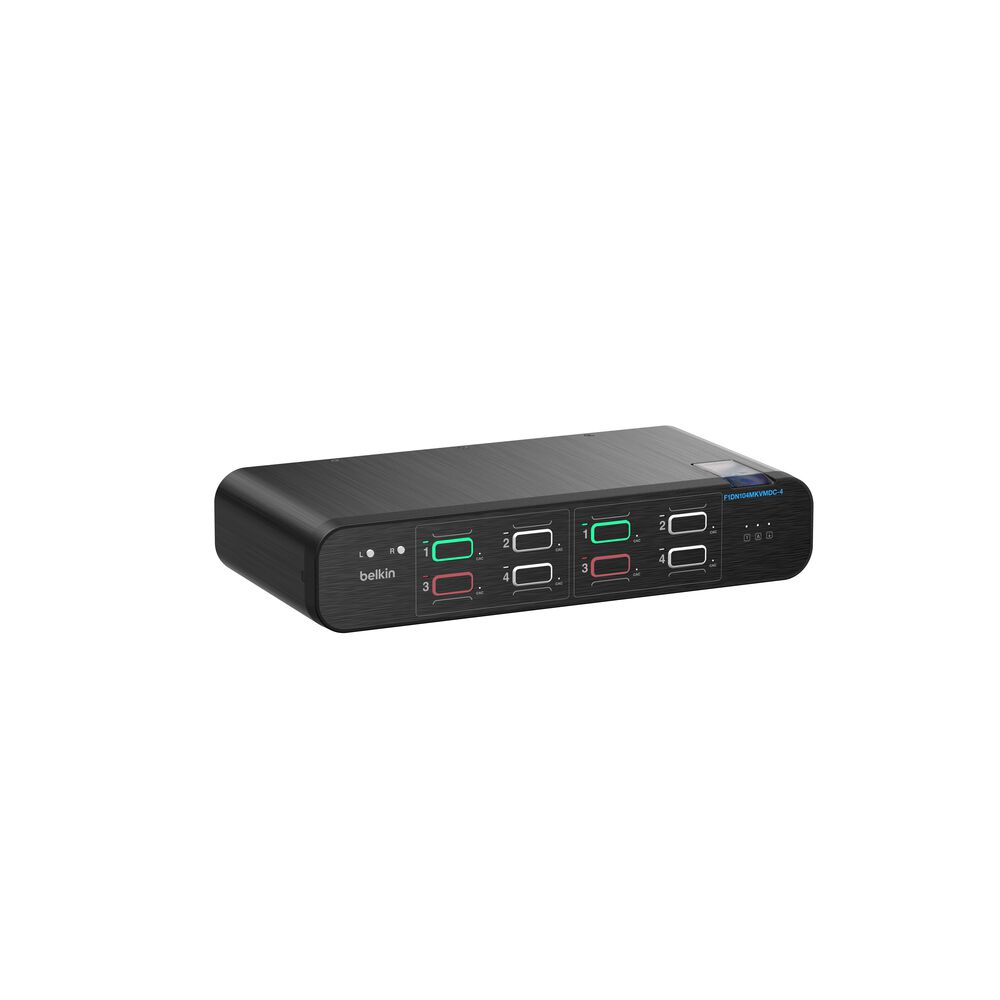

Belkin 4:2 DisplayPort DuoClave Secure KVM with CAC – Black

Description

DisplayPort DuoClave Secure KVM Series

Certified for NIAP Protection Profile PSD 4.0 to meet the highest cybersecurity standards, Belkin 4:2 DisplayPort DuoClave Secure KVM with CAC allows users to securely switch between two computer sources while simultaneously viewing two networks on different displays.

Features

• Designed for use on Government and Military networks and configured to meet NIAP Protection Profile PSD 4.0
• Built for secure multitasking, allowing efficient management and viewing of two active networks simultaneously on up to two displays
• Predefined configurations allow users to select the most common monitor layout for their specific working environment
• Situational awareness:

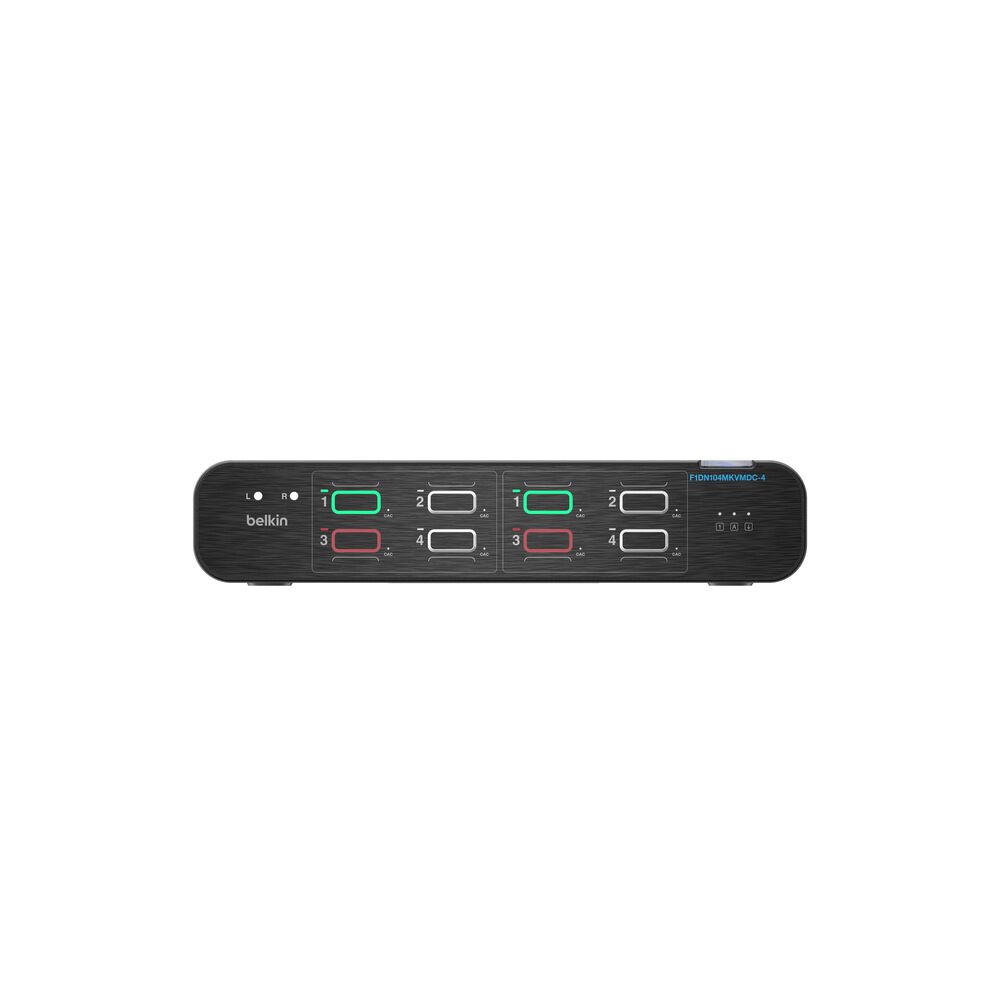

  • Convenient preconfigured port coloring ensures front panel facilitates channel identification, reducing operator errors (channel 1 = green, 2 = white, 3 = red, 4 = white)
• Key Press Seamless Cursor Switching (KPSCS)
  • Keyboard control follows mouse as cursor crosses one physical display to the other with a keyboard key held down
• Lag-free, real-time switching
  • Hardware-based solution eliminates keyboard and mouse delay when switching between ports, offering a fluid and intuitive user experience
• True data path isolation
  • Optical data diodes prevent peripherals from being used to breach systems
• Innovations for optimal user experience:
  • Compatible with the optional Belkin SKVM 4-Port Remote Control series delivering the ultimate solution for decluttering the desk while enhancing the operator’s awareness of the security domain they’re working in
• Tamper-proof system:
  • Always-on, battery-backed, active anti-tamper circuit protects the unit from experiencing a breach while in transit and after deployment
• TAA-compliant:
  • Assembled in the USA; U.S.-based technical support; secure packaging ensures integrity from factory to user site


Compatibility

• Black

What’s in the Box

• Belkin 4:2 DisplayPort DuoClave Secure KVM with CAC
• 12V, 2.5A DC power supply with worldwide mains connectors for NA, EU, UK, ANZ
• Port naming labels
• Pre-deployment Checklist, Quick Start Guide and compliance documentation

Specifications

• Brand: Belkin
• Manufacturer Part Number: F1DN104MKVMDC-4
• Dimensions: 15 x 5.1 x 11.3 in
• Weight: 6.85 lb
• Certifications: FCC Class A UL CE RoHS ICES RCM

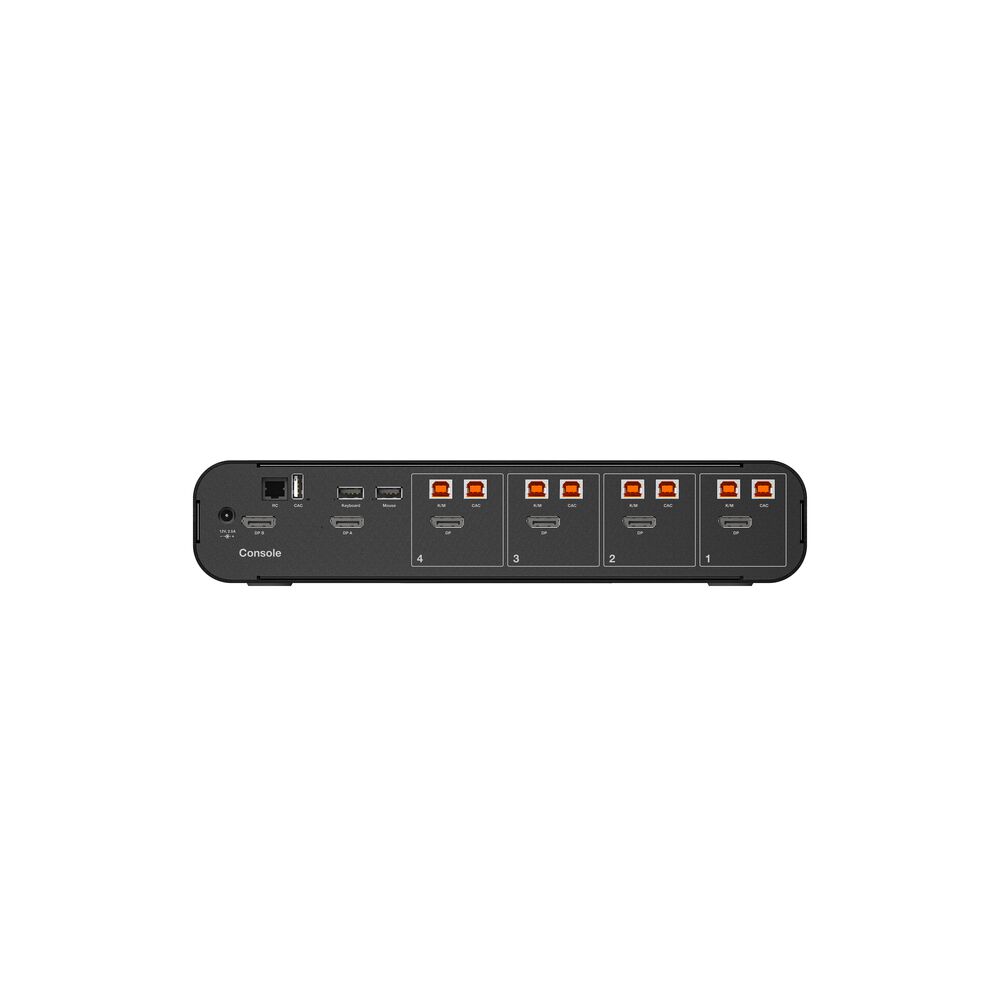

• Console Ports: 2, Up to 2 Monitors
• Display Connection: DP
• Display Type: DP
• Form Factor: Desktop
• Host Ports: 4
• Housing Type: Formed Sheet Steel
• Indicator Light Status: Port selected, EDID, Keyboard, Mouse
• Keyboard Input: 1
• Keyboard/Mouse Connections: 2
• Keyboard Type: USB
• KVM Maximum Resolution Supported: 4K@60hz
• Local Console Interfaces: 2, Up to 2 Monitors
• Maximum Resolution: 4K@60hz
• Mouse Input: 1
• Mouse Type: USB
• PC Ports: 4
• Power Rating: 12VDC, 2.5A
• Power Supply Included: Yes
• Power Supply Type: External
• Remote Control Included: No
• Supported Audio Formats: Digital Audio via DisplayPort
• Supported Video Formats: DP
• TAA Compliant: Yes
• Category: Belkin Products
