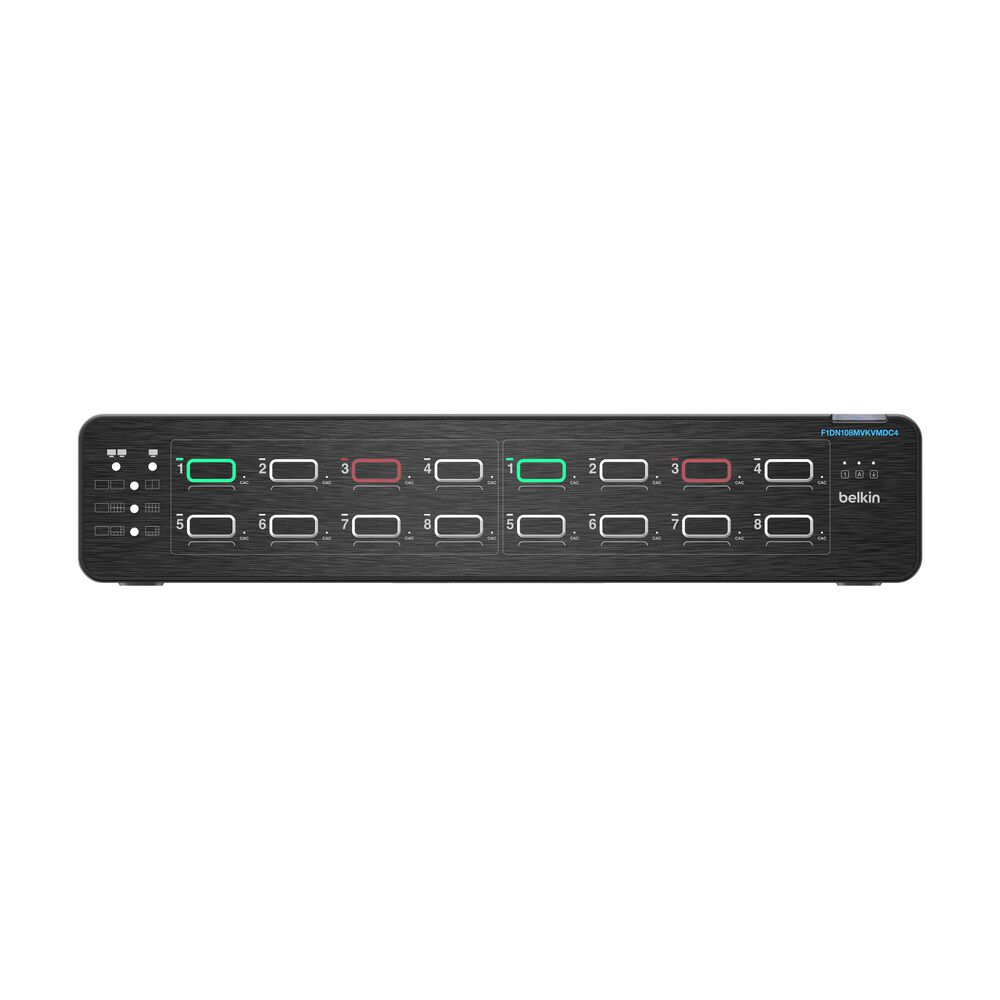

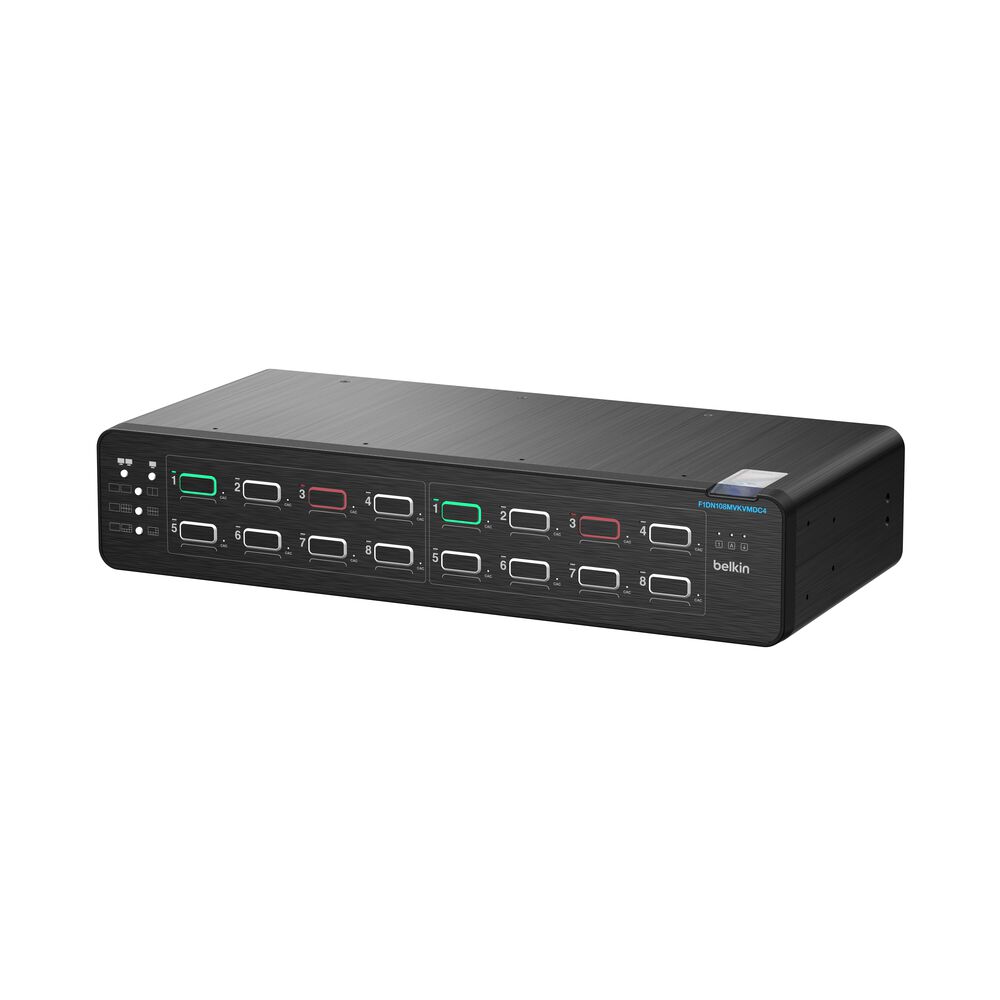

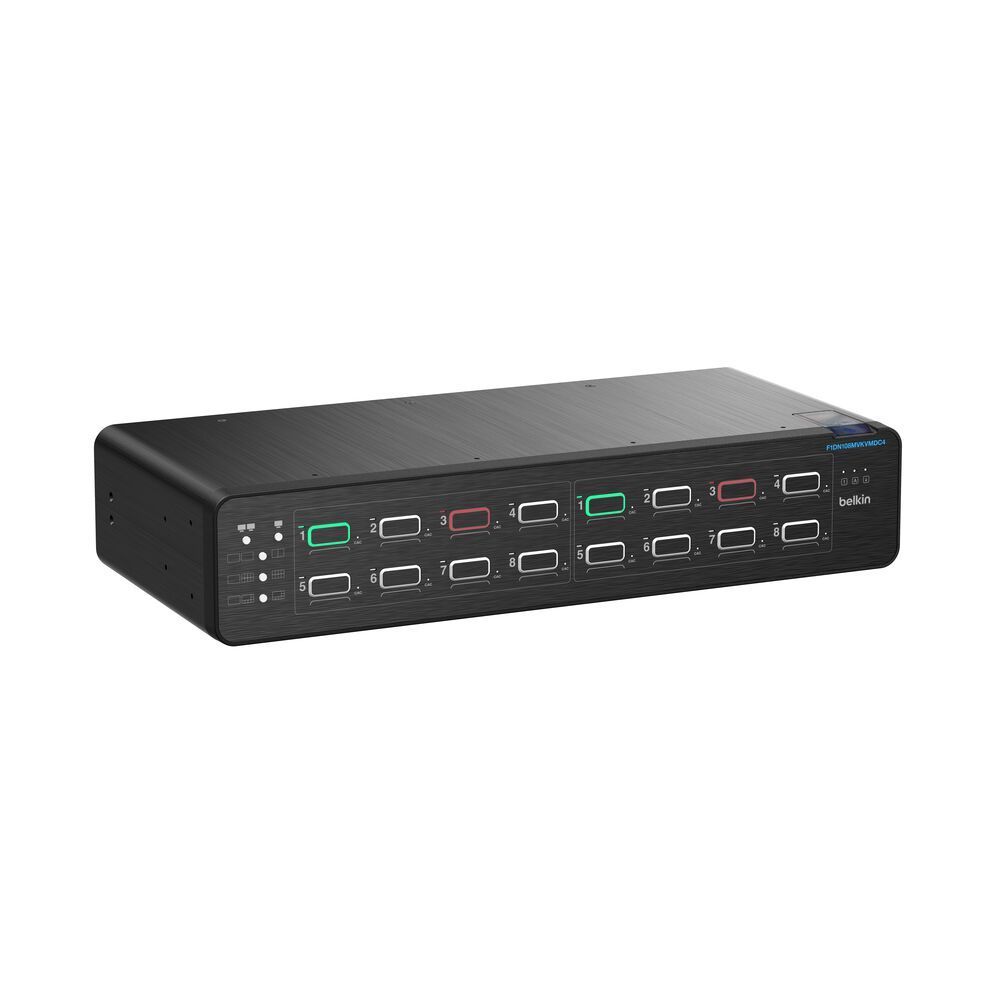

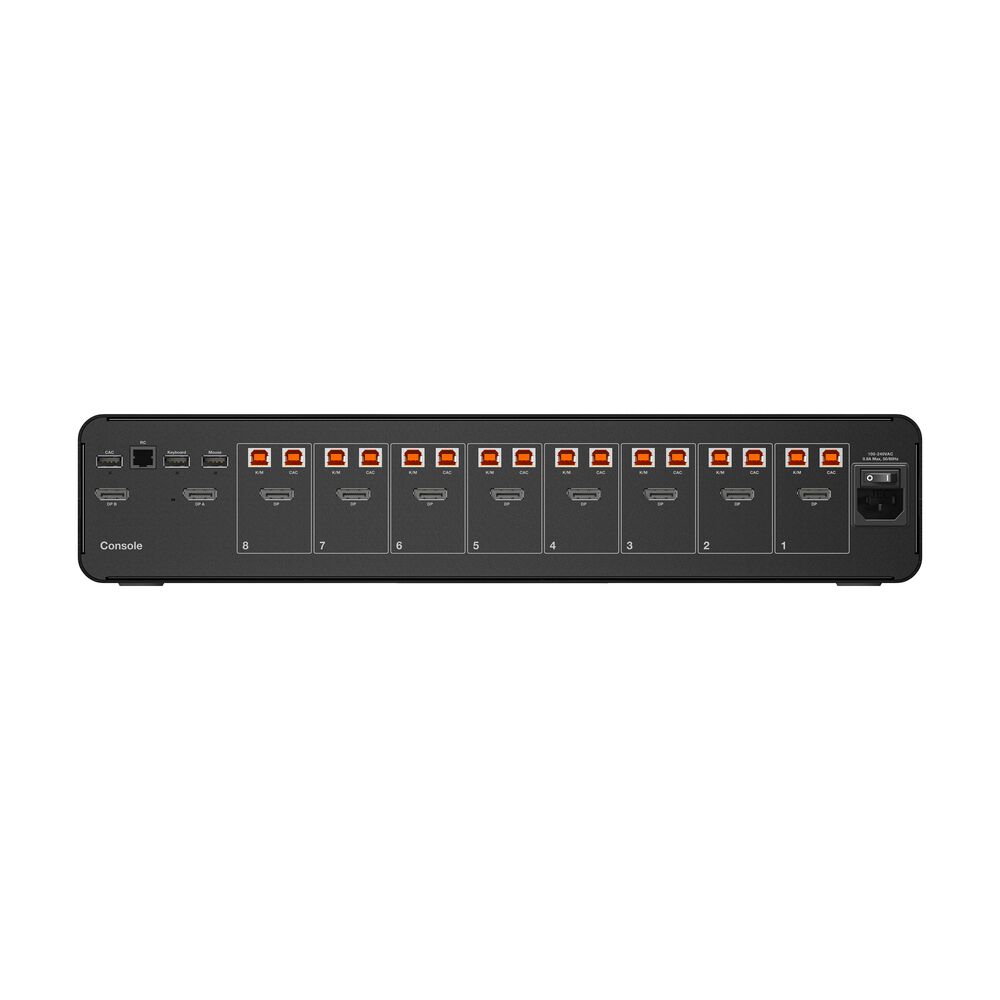

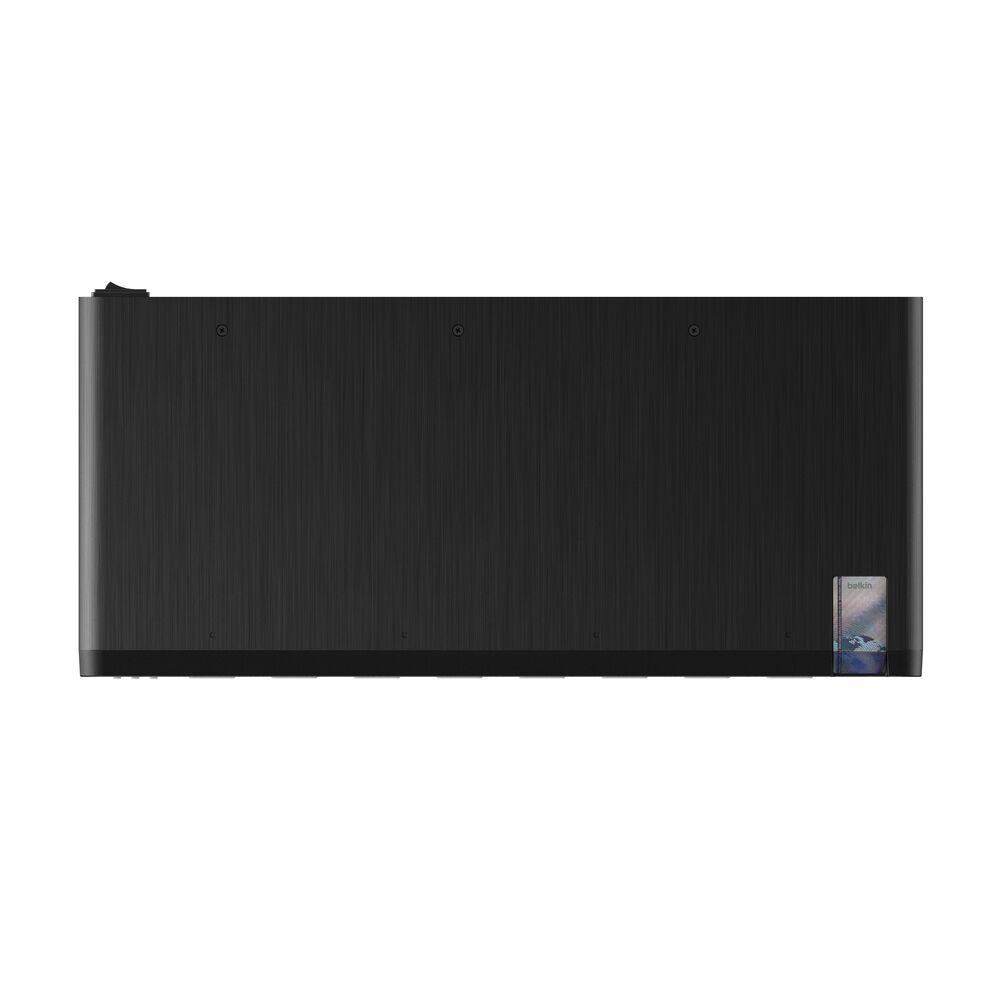

Belkin 8:2 DisplayPort MultiClave Secure KVM with CAC – Black

Description

DisplayPort MultiClave Secure KVM Series

Certified for NIAP Protection Profile PSD 4.0 to meet the highest cybersecurity standards, Belkin MultiClave Secure KVM enables secure management of 8 sources simultaneously. MultiClave SKVM offers consistent window visibility to users’ networks without the constant enclave toggle.

Features

• Designed for use on Government and Military networks and configured to meet NIAP Protection Profile PSD 4.0
• Built for use in defense and intelligence, banking and trading, security operations centers (SOCs) or network operations centers (NOCs), as well as command and control environments
• Secure multitasking allows efficient management and view of up to eight active networks simultaneously
• Windowing Flexibility:
  • Predefined configurations allow user to select the most common command operation views with single or dual displays connected to the MultiClave SKVM. Windowing capability offers operators simultaneous multi-operational views
• Designed for systems using high-performance DisplayPort graphics outputs as well as monitor inputs
• Fully compatible with DisplayPort connections supporting resolutions of UHD 4K@30Hz
• Formed steel housing offers a rigid structure for demanding military applications
• Situational awareness:
  • Convenient preconfigured port coloring ensures front panel facilitates channel identification, reducing operator errors (channel 1 = green, 2 = white, 3 = red, all others = white)
• Key Press Seamless Cursor Switching (KPSCS)
  • Keyboard control follows mouse as cursor crosses one physical display to the other with a keyboard key held down
• Lag-free, real-time switching
  • Hardware-based solution eliminates keyboard and mouse delay when switching between ports, offering a fluid and intuitive user experience
• True data path isolation
  • Optical data diodes prevent peripherals from being used to breach systems
• Innovations for optimal user experience:
  • Compatible with the optional Belkin SKVM 8-Port Remote Control series, delivering the ultimate solution for decluttering the desk while enhancing the operator’s awareness of the security domain they’re working in
• Tamper-proof system:
  • Always-on, battery-backed, active anti-tamper circuit protects the unit from experiencing a breach while in transit and after deployment
• TAA-compliant:
  • Assembled in the USA; U.S.-based technical support; secure packaging ensures integrity from factory to user site

Compatibility

• Black

What’s in the Box

• Belkin 8:2 DisplayPort MultiClave Secure KVM with CAC
• 12V, 4.0A DC power supply with worldwide mains connectors for NA, EU, UK, ANZ
• Port naming labels
• Pre-deployment Checklist, Quick Start Guide and compliance documentation

Specifications

• Brand: Belkin
• Manufacturer Part Number: F1DN108MVKVMDC4
• Dimensions: 5.5 x 21.1 x 14.2 in
• Weight: 15.05 lb
• Certifications: FCC Class A UL CE RoHS ICES RCM
• Console Ports: 2, Up to 2 Monitors
• Display Connection: DP
• Display Type: DP
• Form Factor: Rack Mount
• Host Ports: 8
• Housing Type: Formed Sheet Steel
• Indicator Light Status: Port selected, EDID, Keyboard, Mouse
• Keyboard Input: 1
• Keyboard/Mouse Connections: 2
• Keyboard Type: USB
• KVM Maximum Resolution Supported: 4K@30hz
• Local Console Interfaces: 2, Up to 2 Monitors
• Maximum Resolution: 4K@30hz
• Mouse Input: 1
• Mouse Type: USB
• PC Ports: 8
• Power Rating: 12VDC, 4.0A
• Power Supply Included: Yes
• Power Supply Type: Internal
• Remote Control Included: No
• Supported Audio Formats: Digital Audio via DisplayPort
• Supported Video Formats: DP
• TAA Compliant: Yes
• Input Voltage (AC): 100-240
• Category: Belkin Products

Purchase from BCI Imaging Supplies

Order the Belkin 8:2 DisplayPort MultiClave Secure KVM with CAC – Black from BCI Imaging Supplies for business, education, government, and professional purchasing. Contact BCI for quantity pricing, procurement assistance, and compatibility questions.
