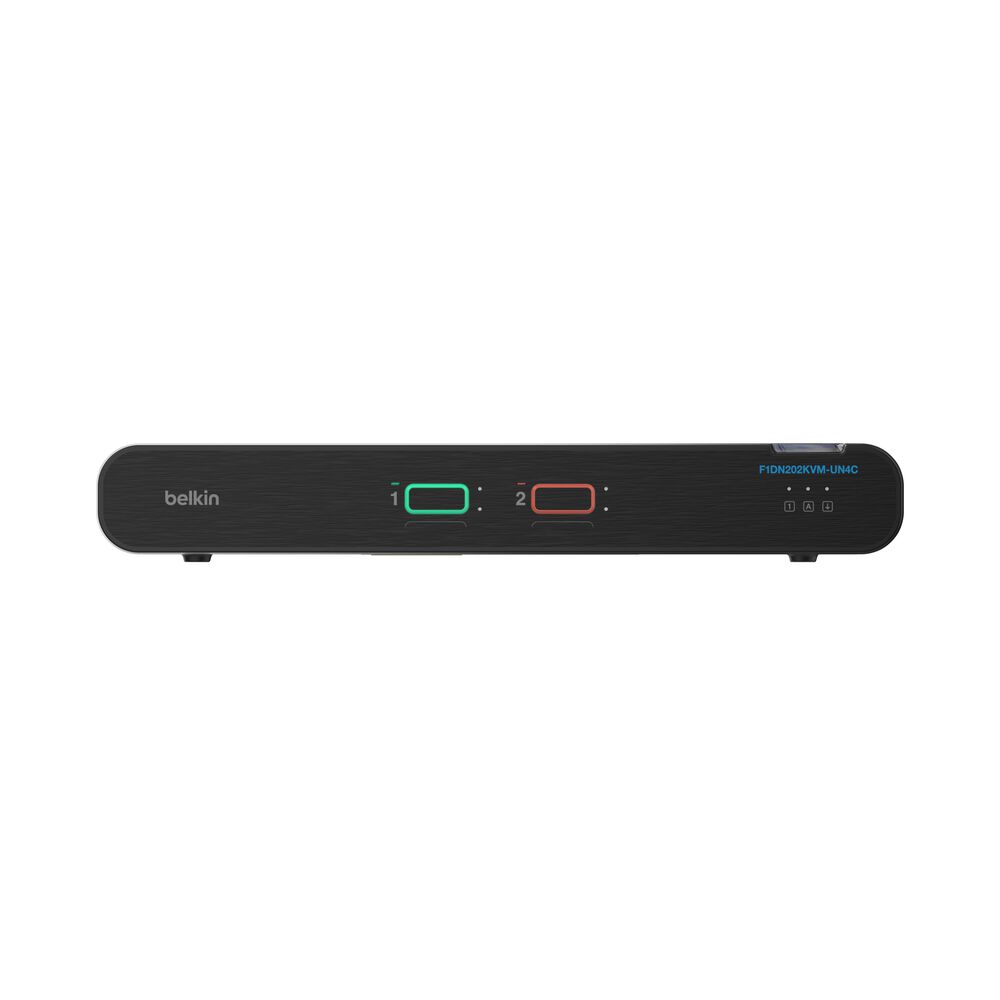

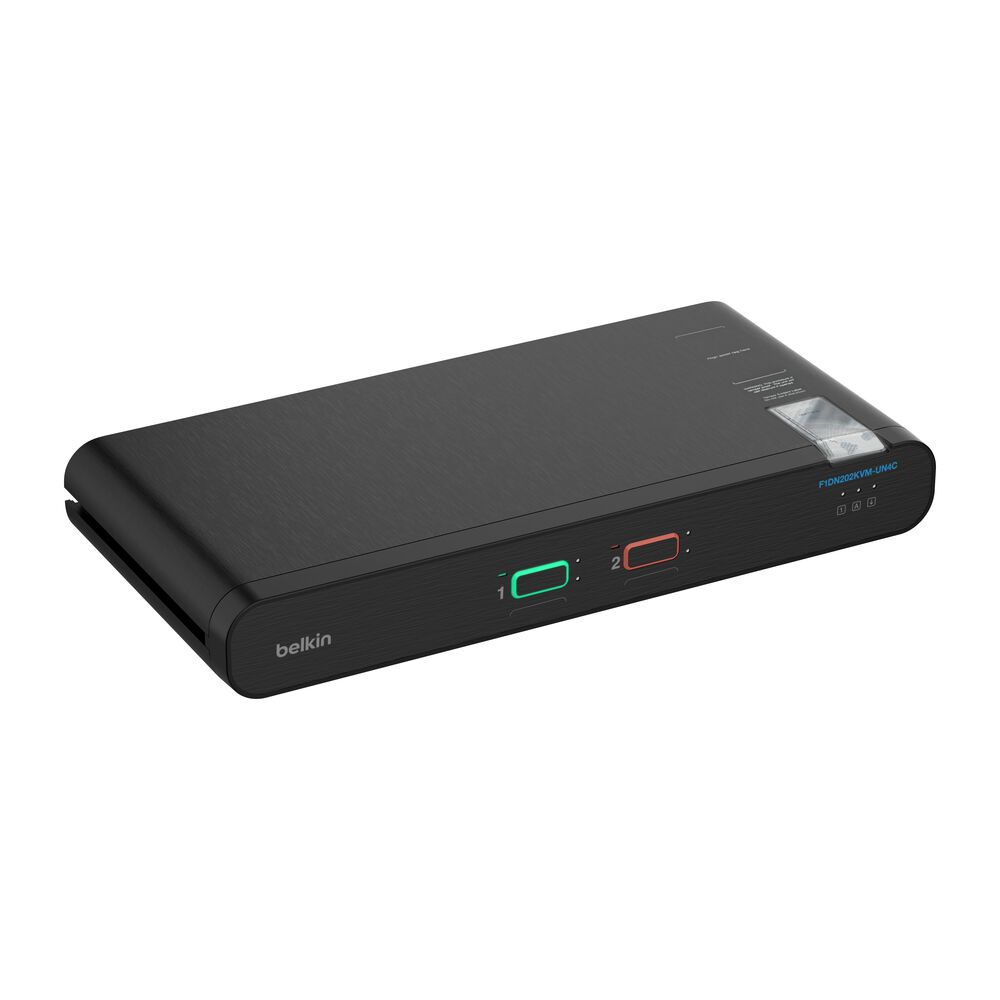

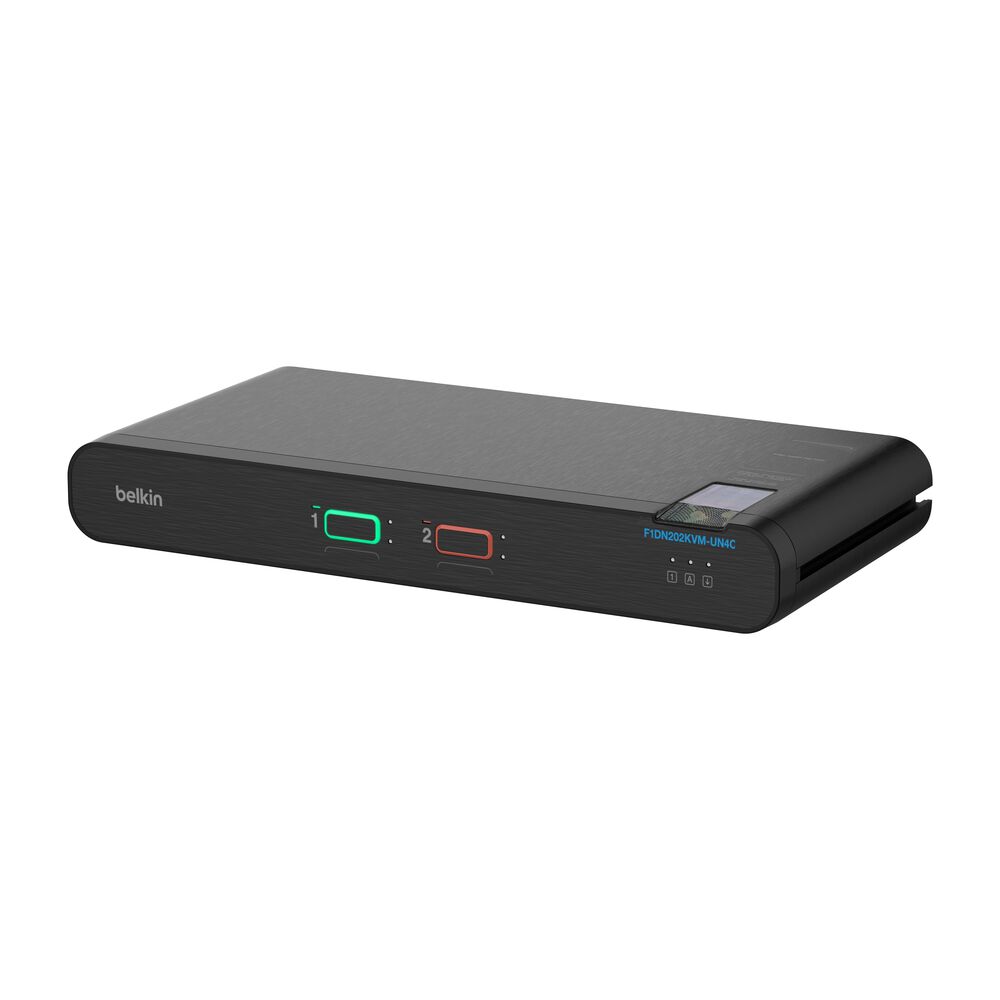

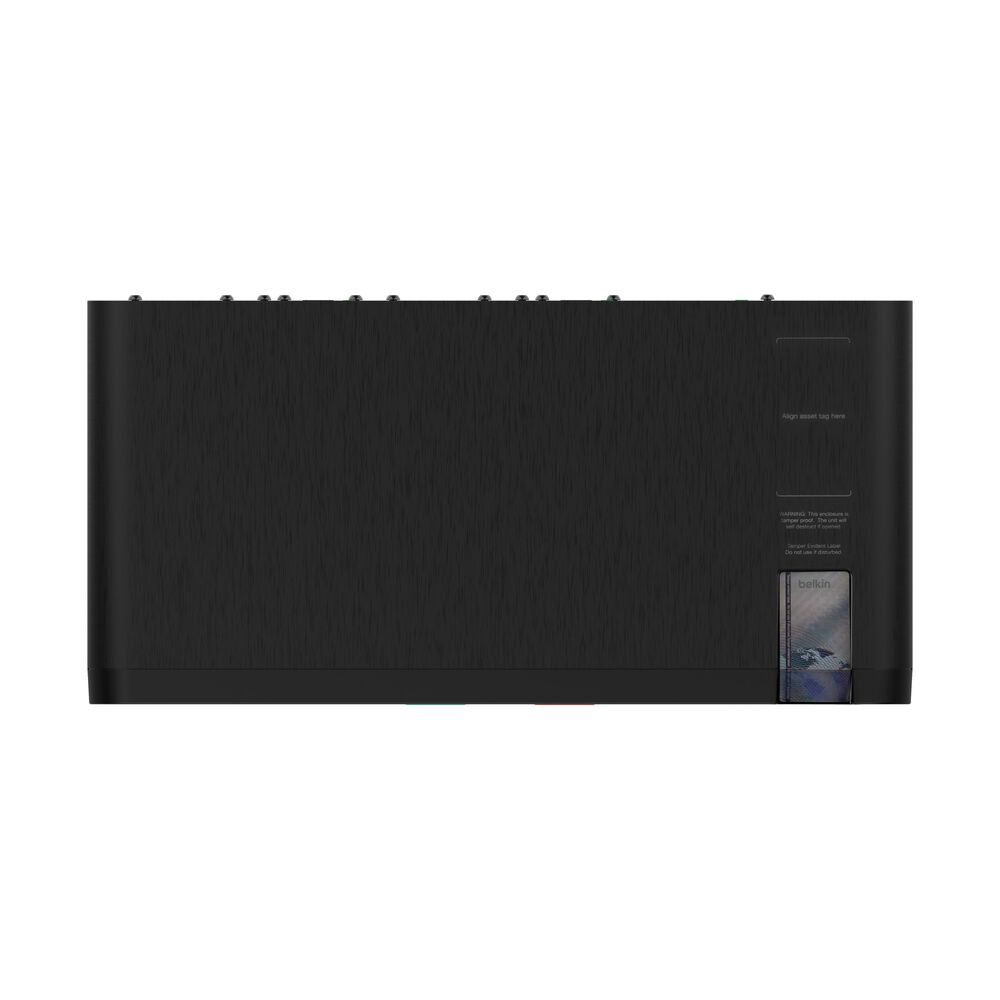

Belkin IsoClave RED/BLACK Secure KVM Switch, 2-Port Dual Head

Description

Belkin IsoClave RED/BLACK SKVM Series

Features

• Designed to meet requirements for red/black isolation between enclaves specified in CNSSAM TEMPEST/01-13, Table 2 and Table 6, 60dB of isolation for digital signaling.*
• Configured for the latest Common Criteria and NIAP cybersecurity standard: NIAP Protection Profile for Peripheral Sharing Devices 4.0.
• Secure and ready to deploy platform:
  • Preinstalled isolating host cables enable efficient deployment, while providing the highest level of isolation in any commercial SKVM.
• Situational awareness:
  • Convenient preconfigured port coloring with the option to change the color scheme, ensures front panel facilitates channel identification, reducing operator errors (channel 1 = green, channel 2 = red).
• Innovations for optimal user experience:
  • Compatible with the Belkin SKVM Remote with Integrated USB Keyboard, delivering the ultimate solution for decluttering the desk while enhancing the operator’s awareness of the security domain they’re working in.
• Designed for use on government and military networks.
• Tamper-proof system:
  • Always-on, battery-backed, active anti-tamper circuit protects the unit while in transit and after deployment from a breach.
• TAA-compliant: Assembled in the USA; U.S.-based technical support; secure packaging ensures integrity from factory to user site.

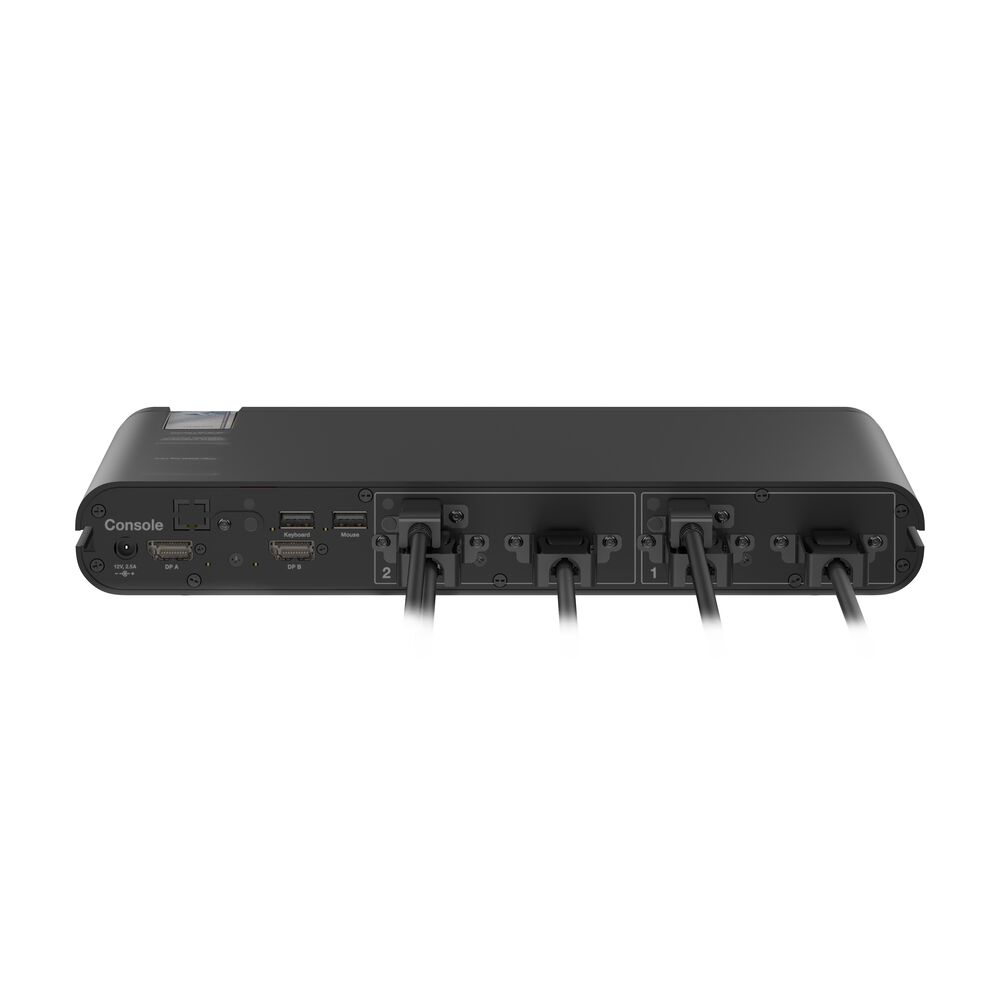

• DisplayPort and USB A-to-B isolating host cables with ferrite chokes are preinstalled with tamper-resistant screws to ensure compatible cables are used out-of-the-box.
• HDMI host and console video ports, analog audio ports, and RCU port (remote control) blocked to ensure optimal security and improve isolation. Users change SKVM channel via front panel of the SKVM unless they are using the Belkin Remote Control with Integrated Keyboard (F1DN008KBD).
• Protected by a 3-year warranty with the option to extend 1 or 2 years.

*Note: Electrical isolation does not imply TEMPEST certification.

Compatibility

• Black

What’s in the Box

• Belkin IsoClave RED/BLACK Secure KVM Switch, 2-Port Dual Head with preinstalled host USB and Video cables
• 12V, 2.5A Universal Power Supply with Worldwide Adaptors
• Port Naming Labels
• Quick Start Guide and Compliance Documentation

Specifications

• Brand: Belkin
• Manufacturer Part Number: F1DN202KVM-UN4C
• Dimensions: 4.1 x 19.4 x 14.7 in
• Weight: 7.1 lb
• Certifications: FCC Class A UL CE RoHS ICES RCM
• Console Ports: Dual monitors
• Display Connection: DisplayPort
• Display Type: DP
• Form Factor: Desktop
• Host Ports: 2
• Keyboard Input: 1
• Keyboard/Mouse Connections: 2
• Keyboard Type: USB
• KVM Maximum Resolution Supported: 4K@60hz
• Local Console Interfaces: Dual monitors
• Maximum Resolution: 4K@60hz
• Mouse Input: 1
• Mouse Type: USB
• PC Ports: 2
• Power Rating: 12VDC 2.5A
• Power Supply Included: Yes
• Power Supply Type: External
• Supported Audio Formats: Digital
• Supported Video Formats: DisplayPort
• Ports: Computers, keyboard, monitors, mouse
• Category: Belkin Products

Purchase from BCI Imaging Supplies

Order the Belkin IsoClave RED/BLACK Secure KVM Switch, 2-Port Dual Head from BCI Imaging Supplies for business, education, government, and professional purchasing. Contact BCI for quantity pricing, procurement assistance, and compatibility questions.
