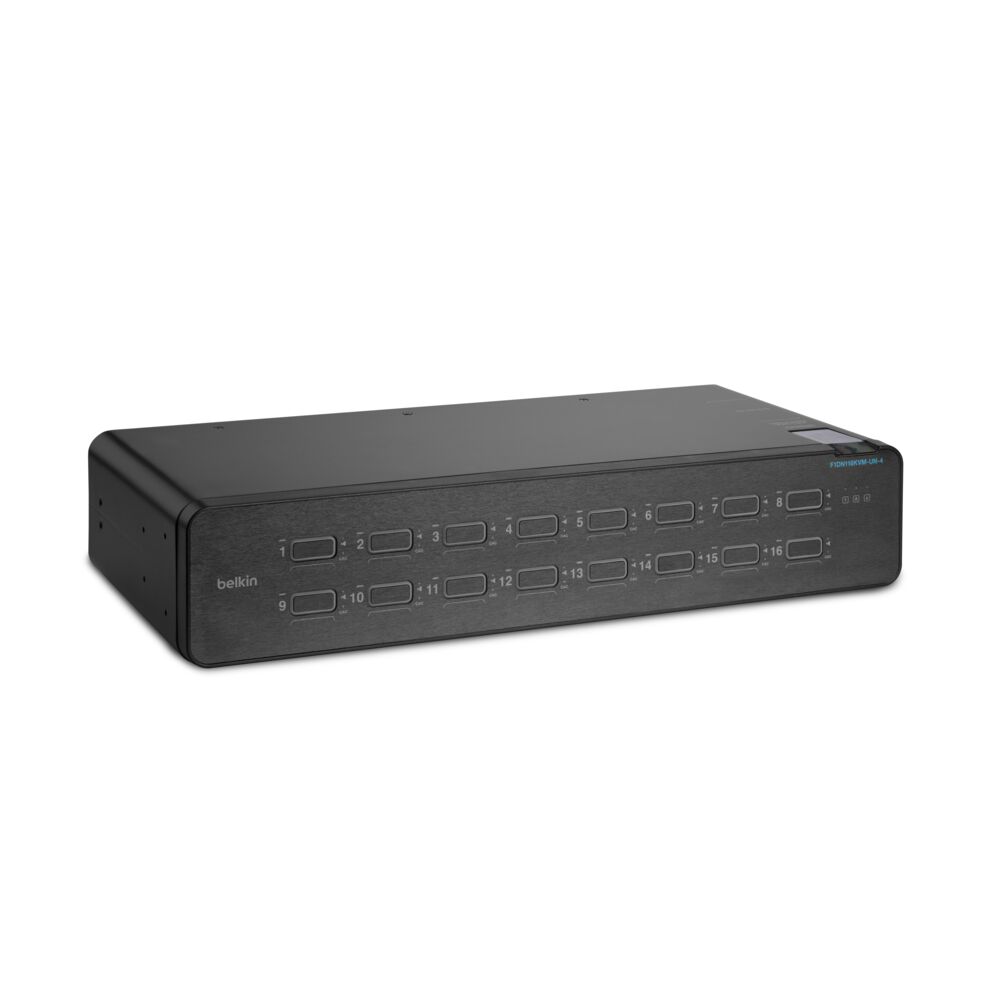

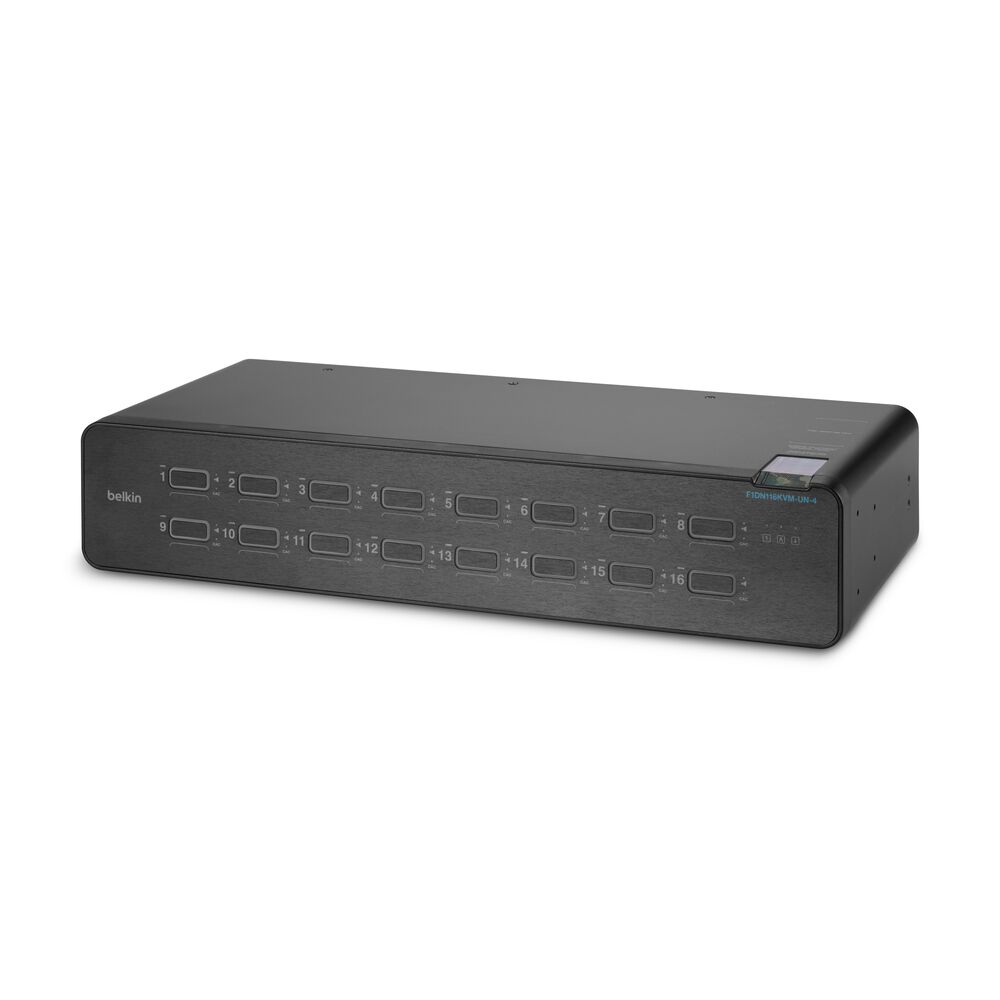

Belkin Universal 2nd Gen Secure KVM Switch, 16-Port Single Head w/ CAC – Black

Description

Belkin Universal 2nd Gen Secure KVM Switch

Features

• Designed for NIAP Protection Profile PSD 4.0 Compliance
• Combo connector video support for up to 4K (3840×2160), @60hz refresh
• Compatible with the Belkin Secure KVM Remote Control with Integrated Keyboard (Optional)

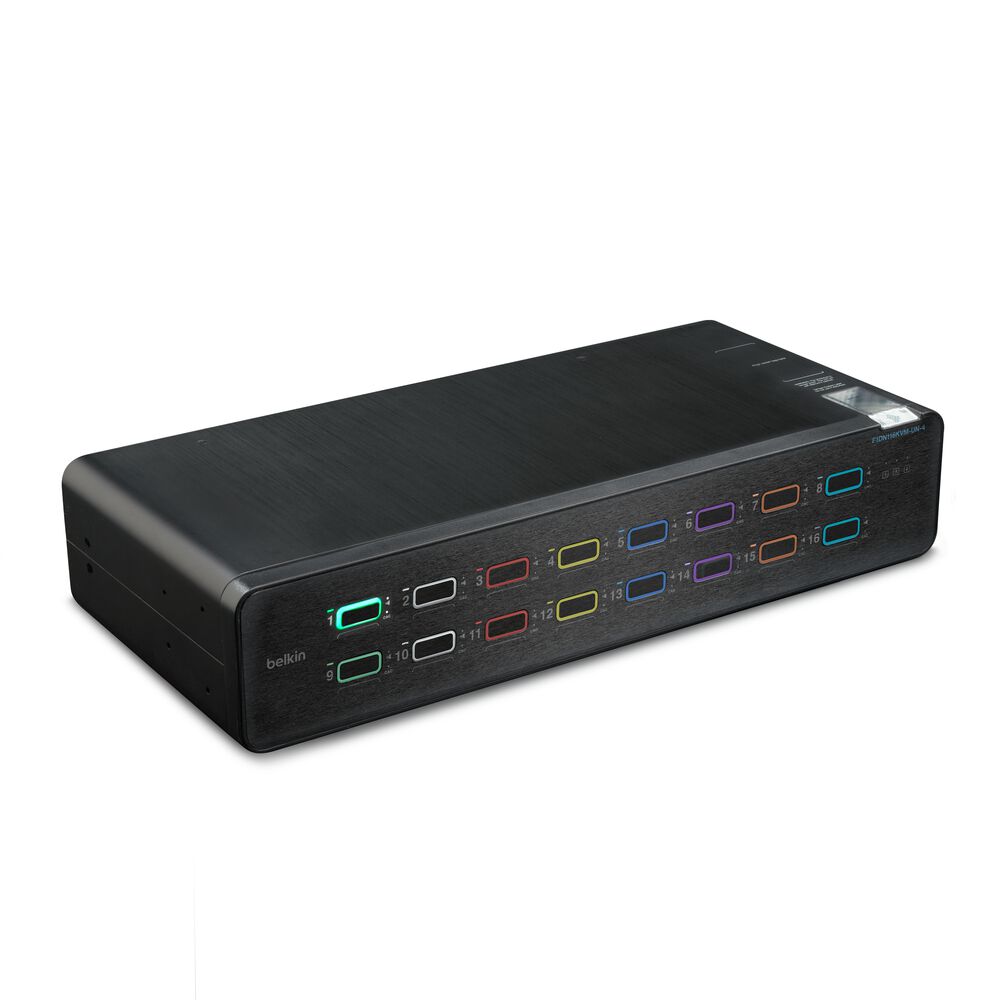

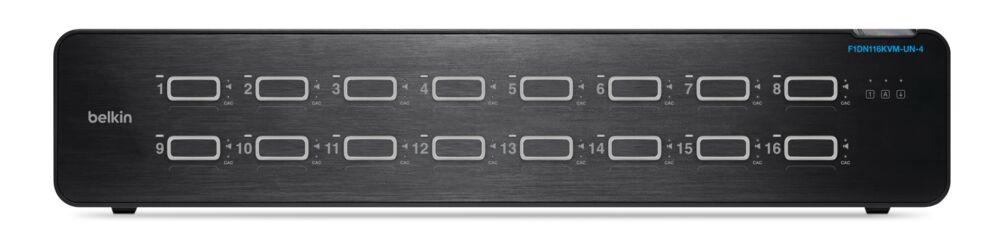

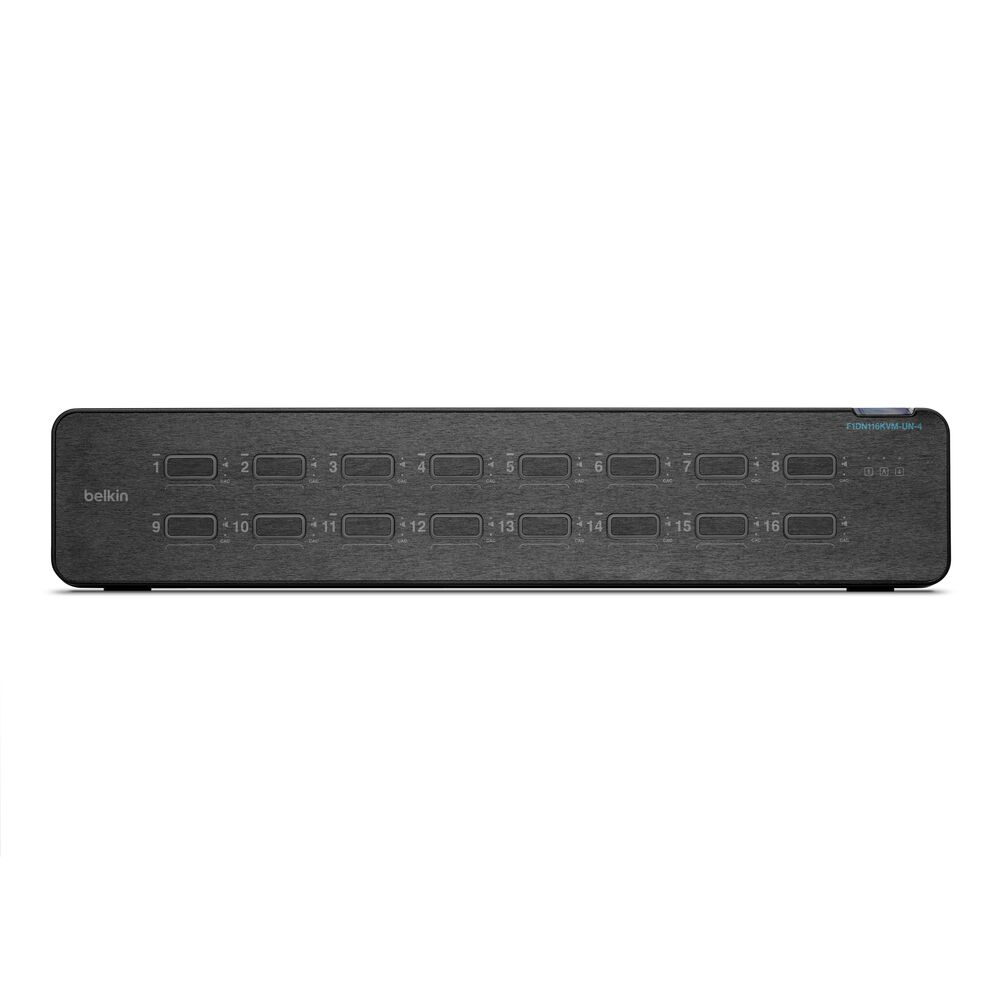

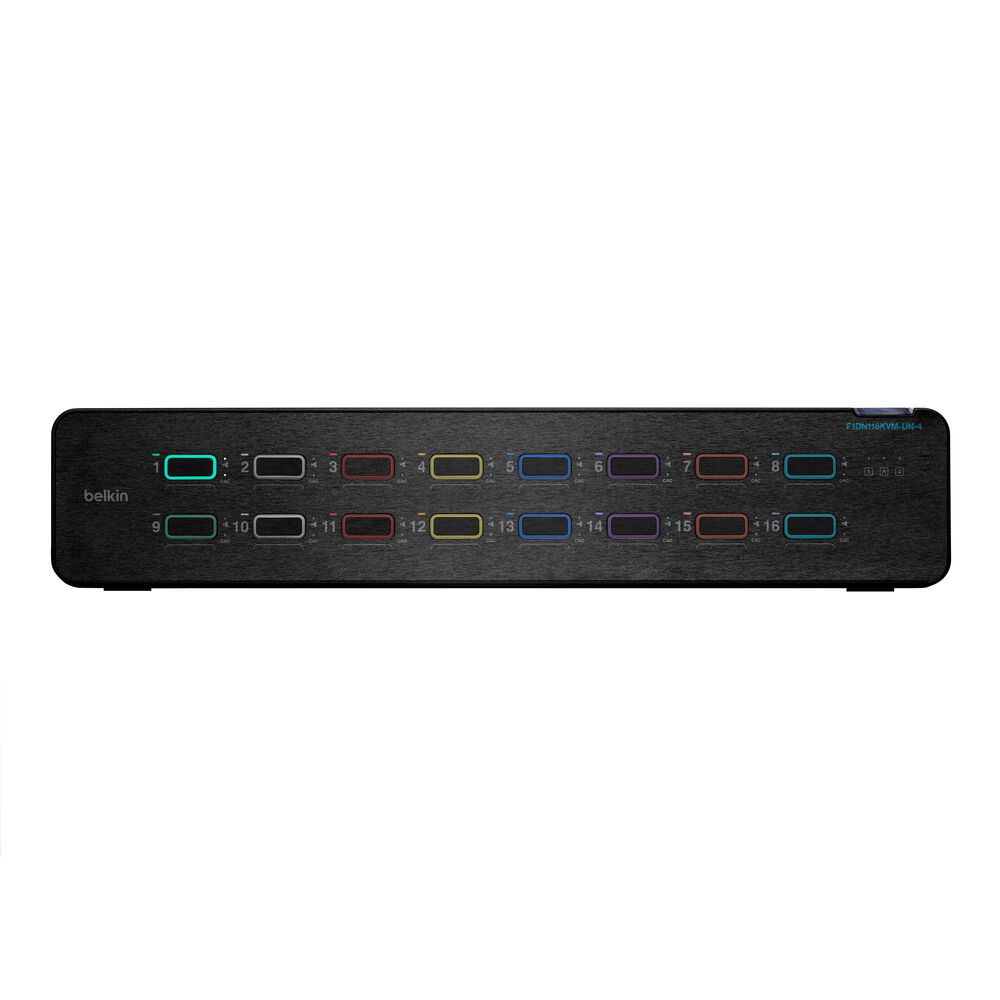

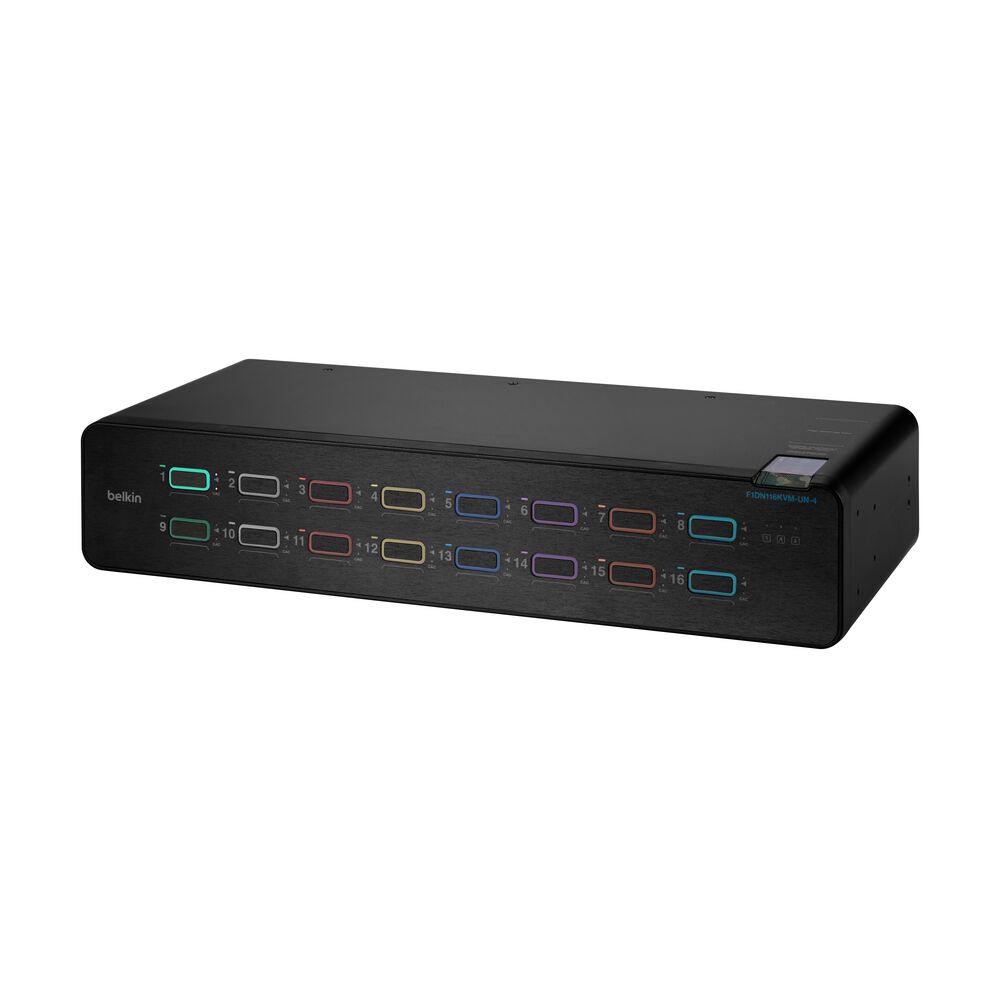

• Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
• Extrusion form factor that supports an under-counter mount (Optional)
• Supports TAA combo and video cables for easy deployment
• Supports up to sixteen host computers
• Supports one display for the user
• CAC and Audio freeze functionality
• Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
• Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
• Display security: Protected display interface prevents data leakage via the monitor
• Analog audio via 3.5mm jack with ultrasonic audio filtering
• Peripheral management: USB device detection prevents unauthorized peripheral usage
• Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
• Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
• Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

Compatibility

• Black

What’s in the Box

• Belkin F1DN116KVM-UN-4 Secure Universal 16-Port, Single Monitor Switch
• Power cord with Worldwide Mains Adapters
• Rack mount adaptors
• Port Naming Labels
• Quick Start Guide and Compliance Documentation

Specifications

• Brand: Belkin
• Manufacturer Part Number: F1DN116KVM-UN-4
• Dimensions: 21.1 x 5.5 x 14.2 in
• Weight: 15.4 lb
• AC Plug Style: Worldwide Power Cord with Interchangable Mains Connector
• Certifications: FCC Class A UL CE RoHS ICES RCM
• Console Ports: 1, Single Monitor
• Display Connection: DP/HDMI
• Display Type: DP/HDMI
• Form Factor: Desktop – Rack Mount
• Host Ports: 16
• Housing Type: Formed Sheet Steel
• Indicator Light Status: Port Selected EDID Keyboard Mouse
• Keyboard Input: 1
• Keyboard/Mouse Connections: 2
• Keyboard Type: USB
• KVM Maximum Resolution Supported: 4K@60hz
• Local Console Interfaces: 1, Single Monitor
• Maximum Resolution: 4K@60hz
• Mouse Input: 1
• Mouse Type: USB
• PC Ports: 16
• Power Rating: 12VDC 4.0A
• Power Supply Included: Yes
• Power Supply Type: Internal
• Remote Control Included: No
• Supported Audio Formats: Analog via 3.5mm
• Supported Video Formats: DP/HDMI
• TAA Compliant: Yes
• Input Voltage (AC): 100-240
• AC Plug Style: IEC Female

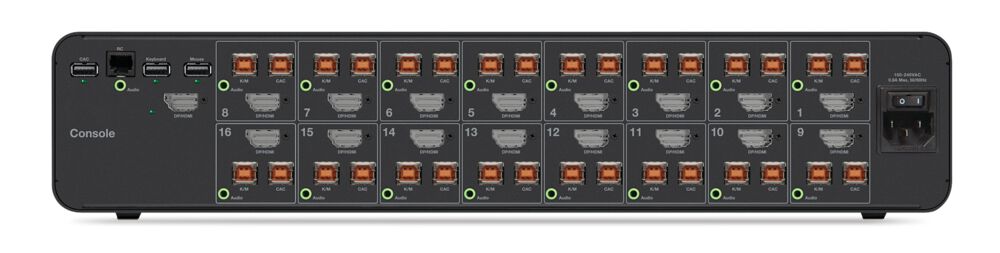

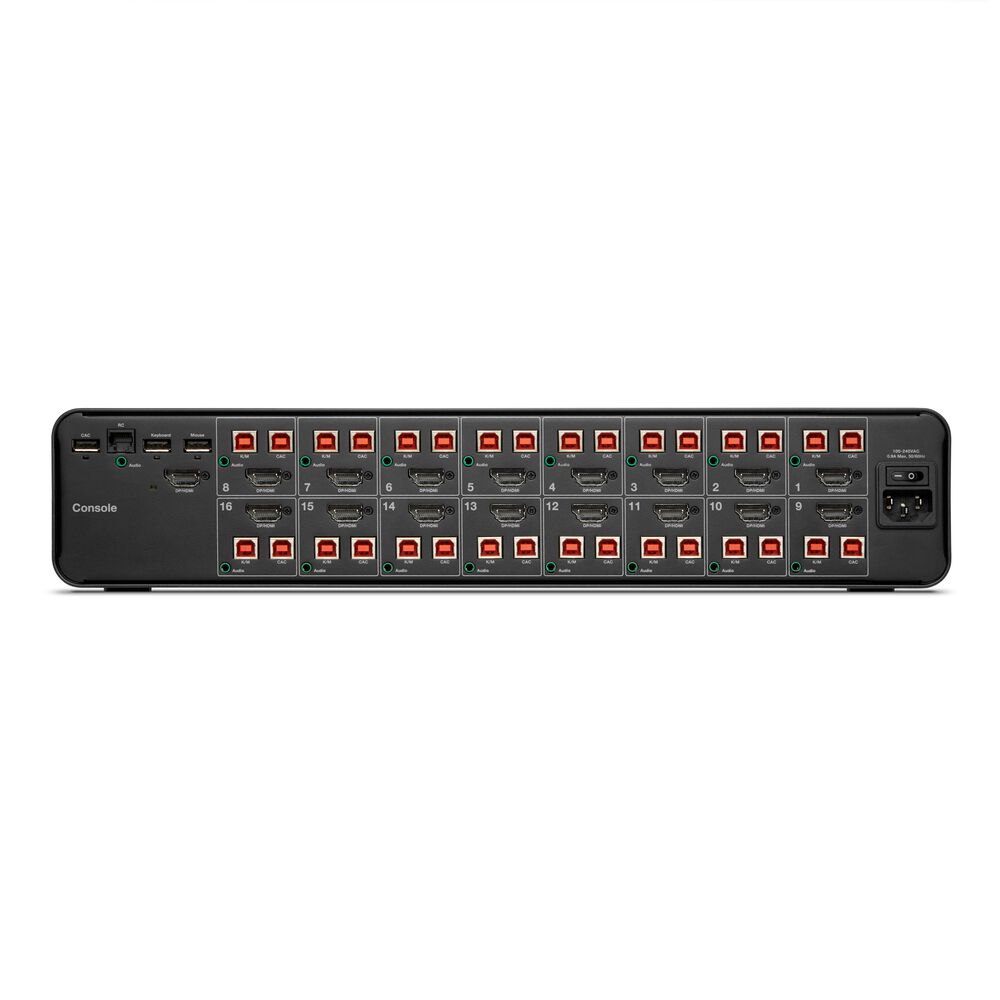

• Ports: 1 CAC/DPP, 1 Keyboard, 1 Monitor, 1 Mouse, 1 Remote, 16 Computers
• Category: Belkin Products
