Belkin Universal 2nd Gen Secure KVM Switch, 4-Port Single Head w/ CAC – Black

Description

Belkin Universal 2nd Gen Secure KVM Switch

Features

• Designed for NIAP Protection Profile PSD 4.0 Compliance
• Combo connector video support for up to 4K (3840×2160), @60hz refresh
• Compatible with the Belkin Secure KVM Remote Control with Integrated Keyboard (Optional)

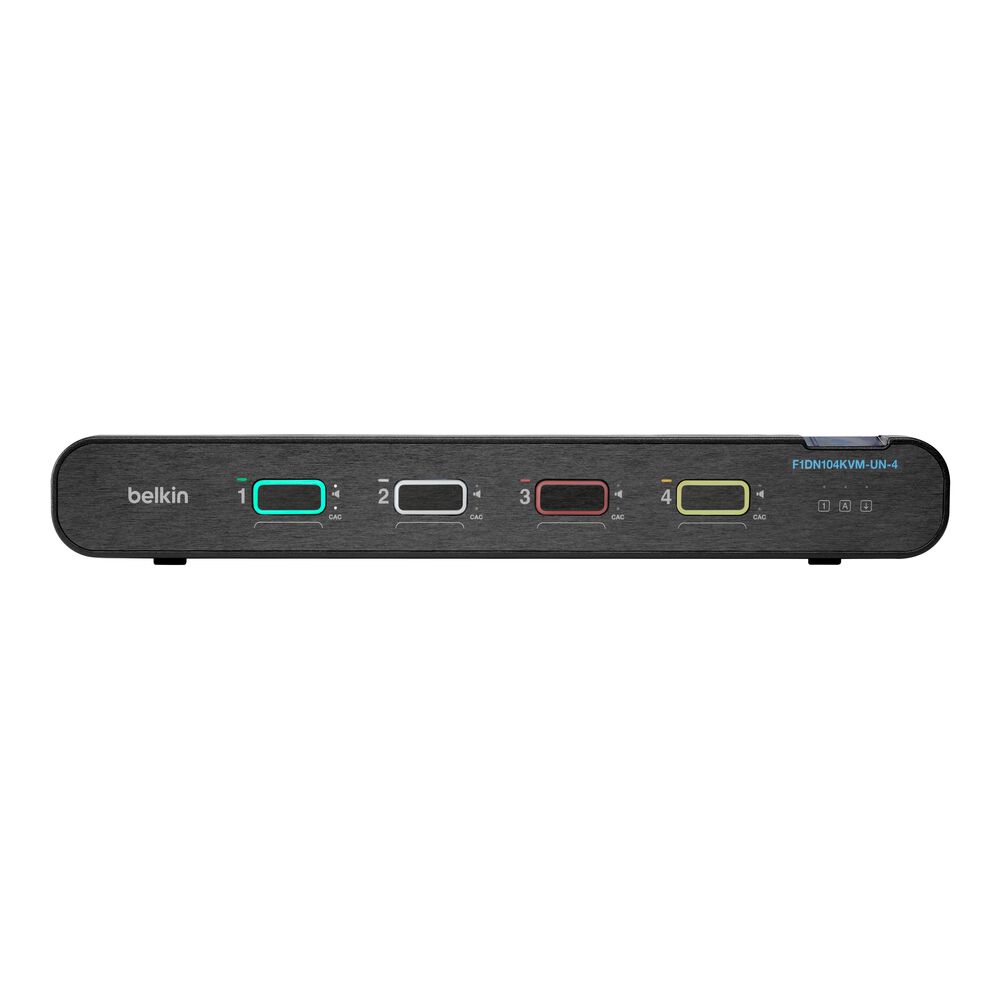

• Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
• Extrusion form factor that supports an under-counter mount (Optional)
• Supports TAA combo and video cables for easy deployment
• Supports up to four host computers
• Supports one display for the user
• CAC and Audio freeze functionality
• Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
• Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
• Display security: Protected display interface prevents data leakage via the monitor
• Analog audio via 3.5mm jack with ultrasonic audio filtering
• Peripheral management: USB device detection prevents unauthorized peripheral usage
• Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
• Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
• Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

Compatibility

• Black

What’s in the Box

• Belkin F1DN104KVM-UN-4 Secure Universal 2nd Gen 4-Port, Single Monitor KVM Switch
• 12V, 2.5A Universal Power Supply with Worldwide Adaptors
• Port Naming Labels
• Quick Start Guide and Compliance Documentation

Specifications

• Brand: Belkin
• Manufacturer Part Number: F1DN104KVM-UN-4
• Dimensions: 5.1 x 15 x 11.2 in
• Weight: 5.15 lb
• Certifications: FCC Class A UL CE RoHS ICES RCM
• Console Ports: 1, Single Monitor
• Display Connection: DisplayPort/HDMI
• Display Type: DisplayPort/HDMI
• Form Factor: Desktop
• Host Ports: 4
• Keyboard Input: 1
• Keyboard/Mouse Connections: 2
• Keyboard Type: USB
• KVM Maximum Resolution Supported: 4K@60hz
• Local Console Interfaces: 1, Single Monitor
• Maximum Resolution: 4K@60hz
• Mouse Input: 1
• Mouse Type: USB
• PC Ports: 4
• Power Rating: 12VDC 2.5A
• Power Supply Included: Yes
• Power Supply Type: External
• Remote Control Included: No
• Supported Audio Formats: 3.5mm Analog
• Supported Video Formats: DisplayPort/HDMI
• TAA Compliant: Yes

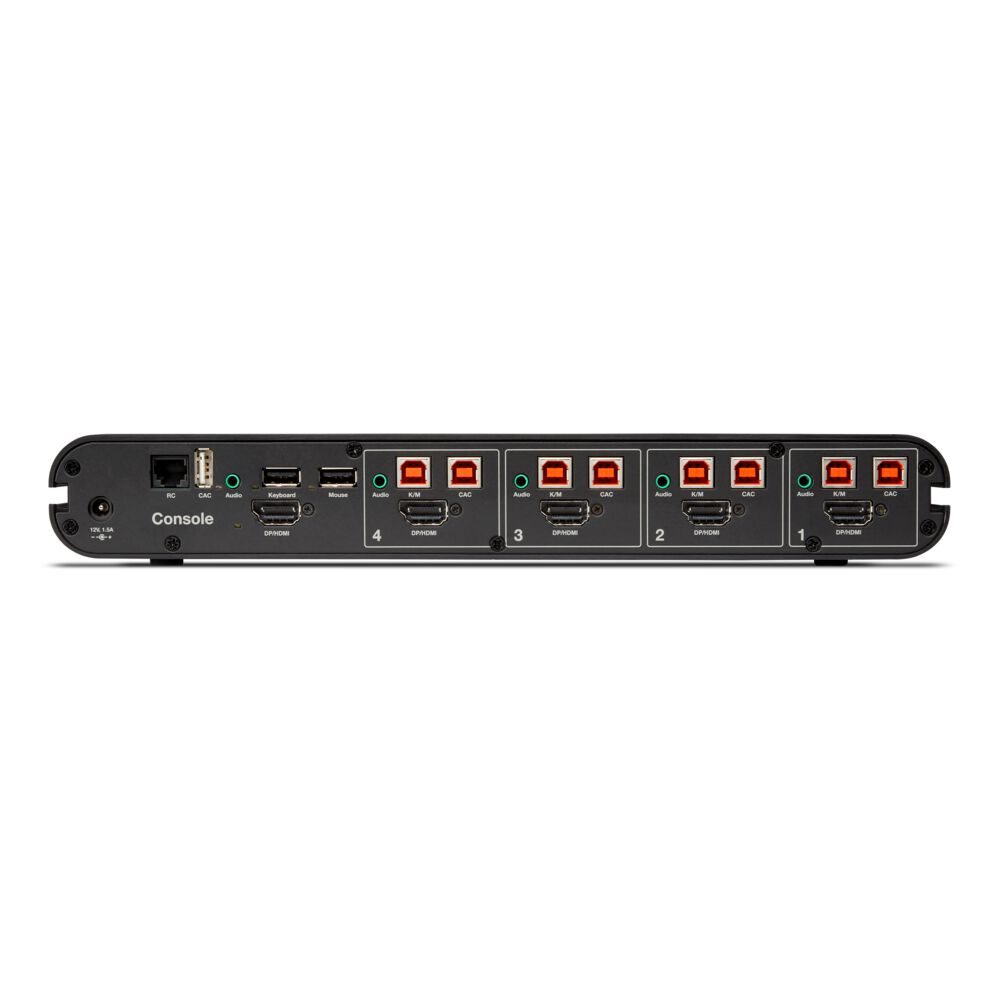

• Ports: CaC/DPP, Computers, Keyboard, Monitors, Mouse, Remote
• Category: Belkin Products

Purchase from BCI Imaging Supplies

Order the Belkin Universal 2nd Gen Secure KVM Switch, 4-Port Single Head w/ CAC – Black from BCI Imaging Supplies for business, education, government, and professional purchasing. Contact BCI for quantity pricing, procurement assistance, and compatibility questions.
