Description

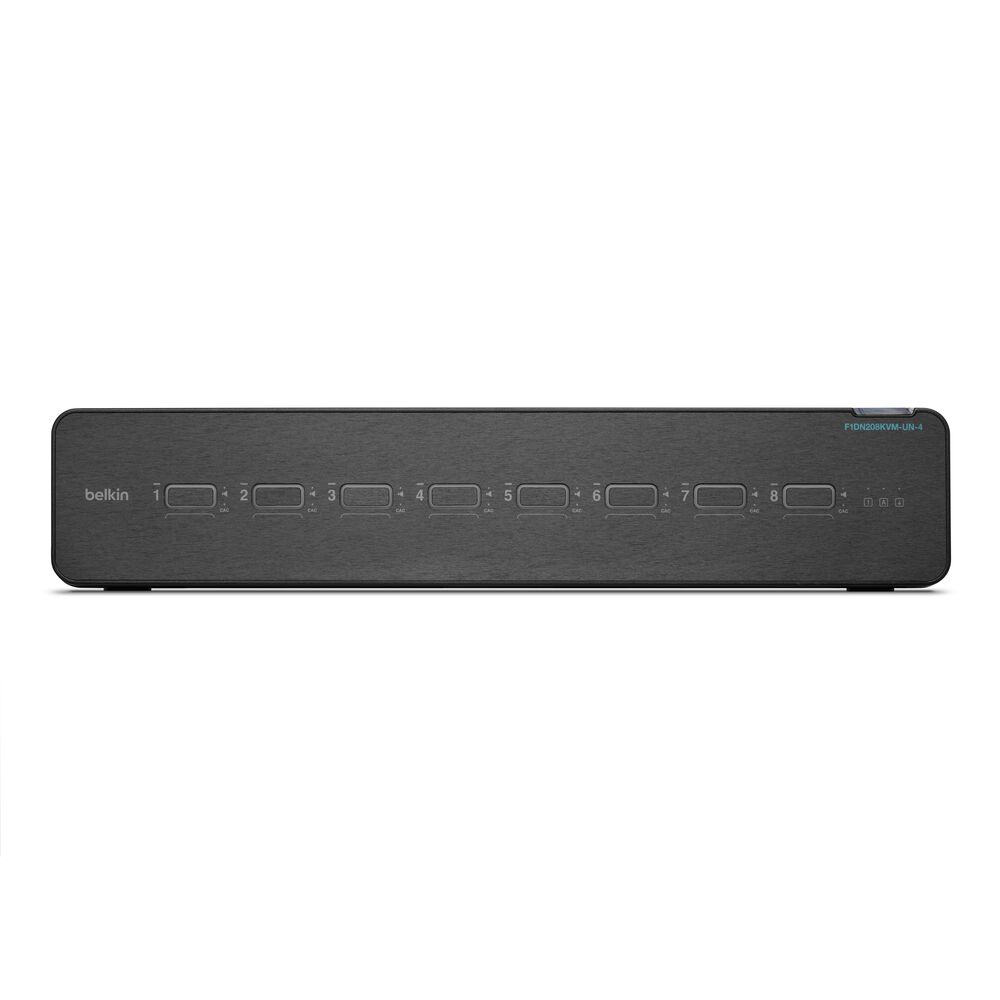

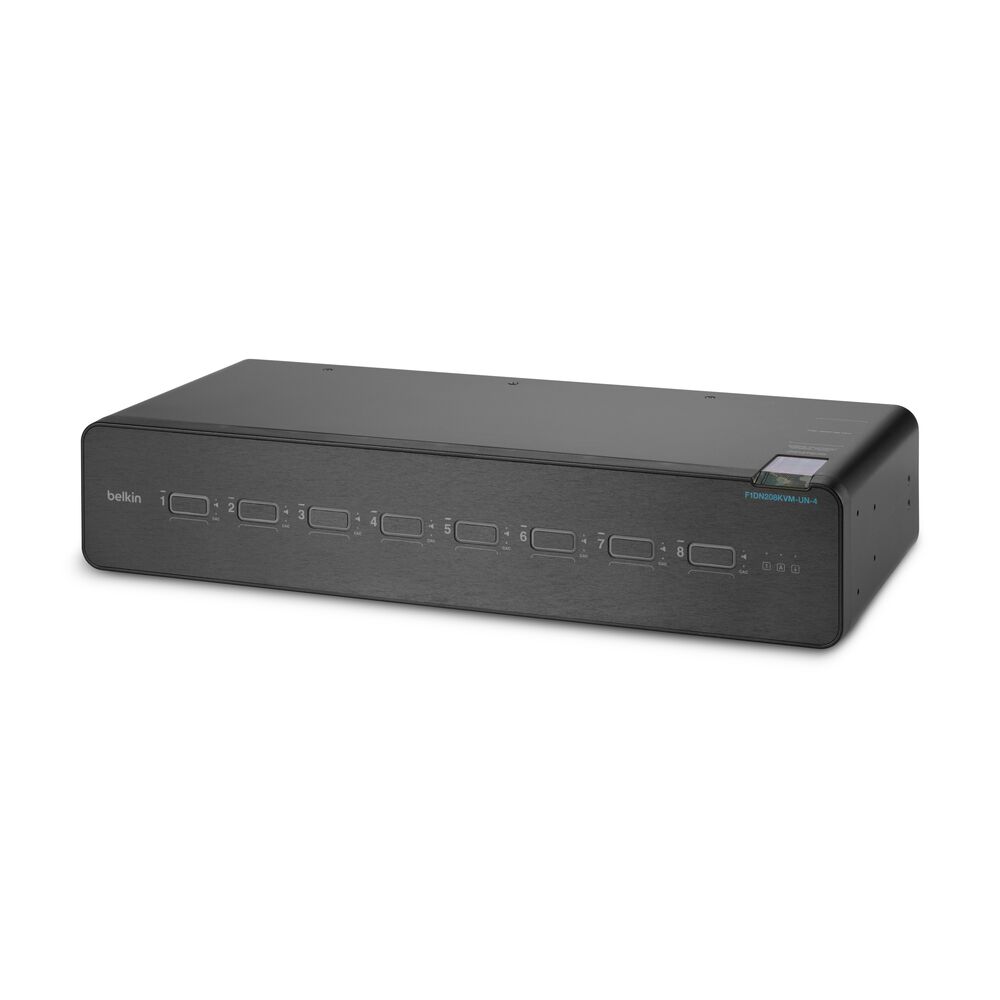

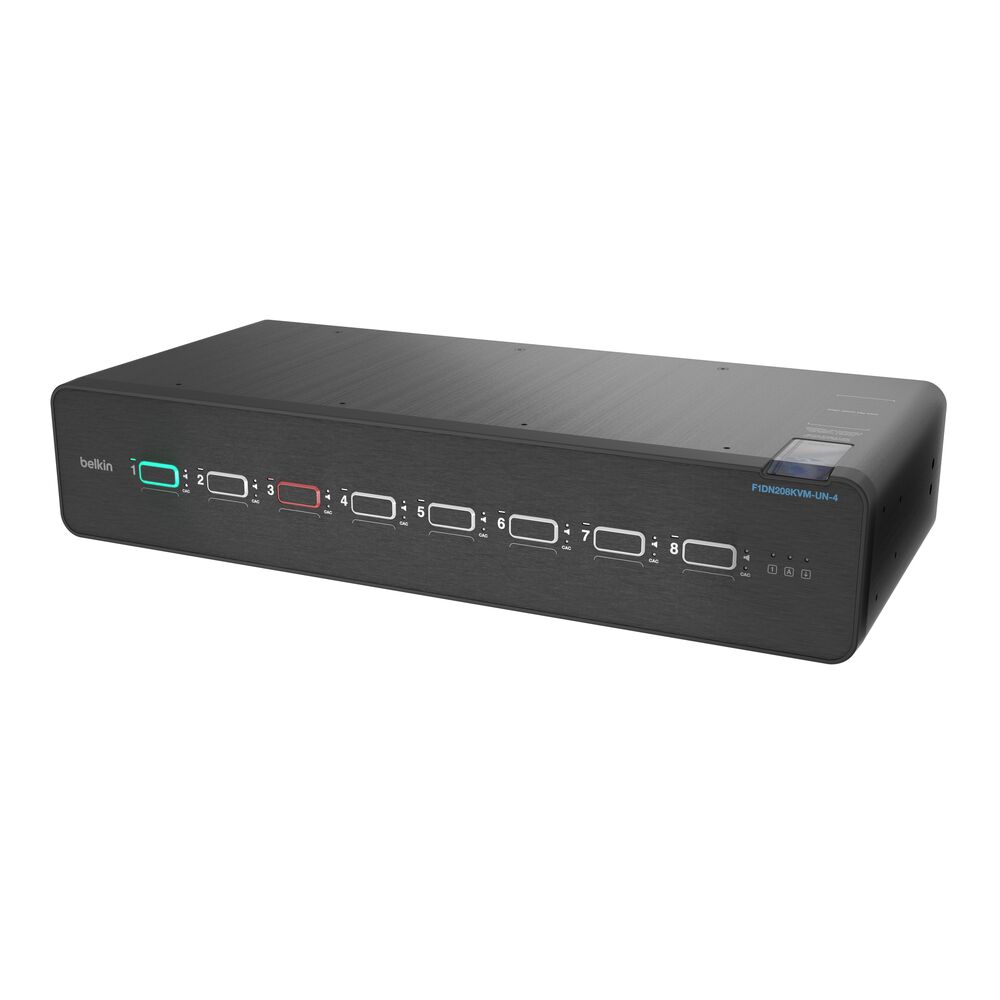

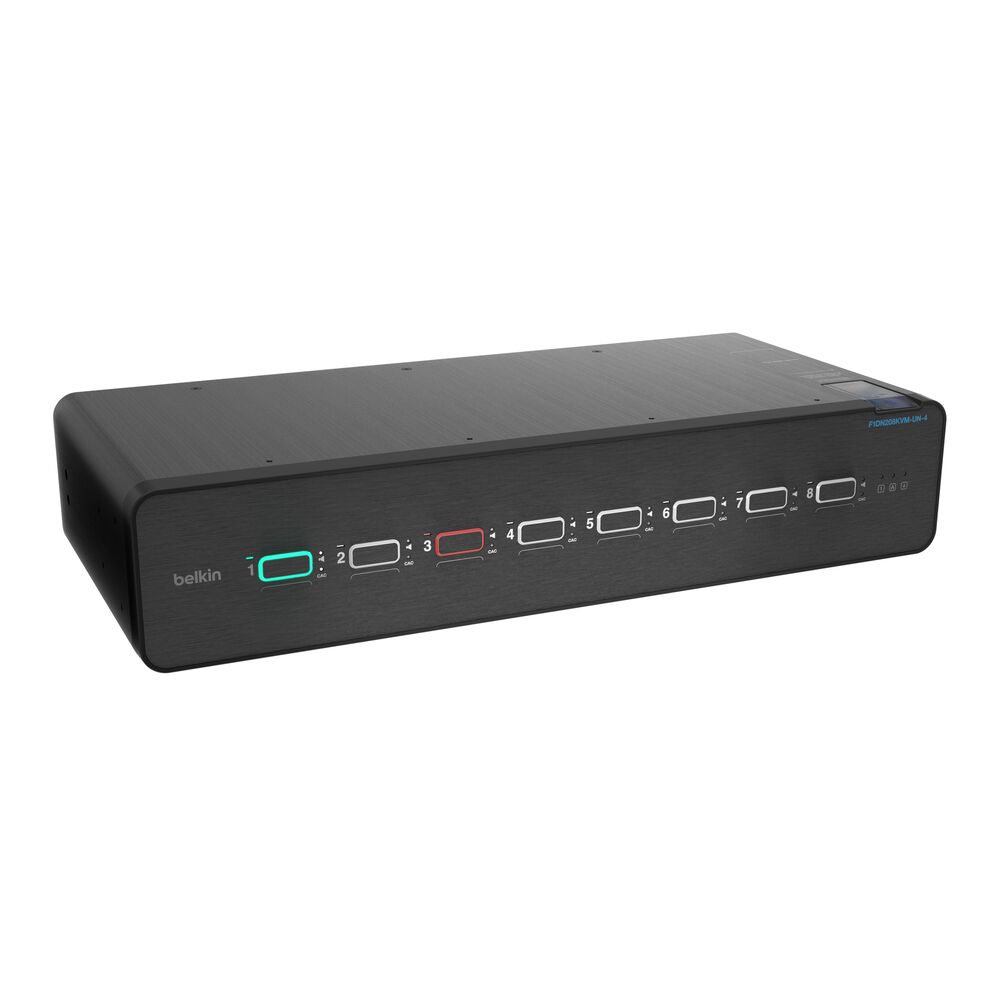

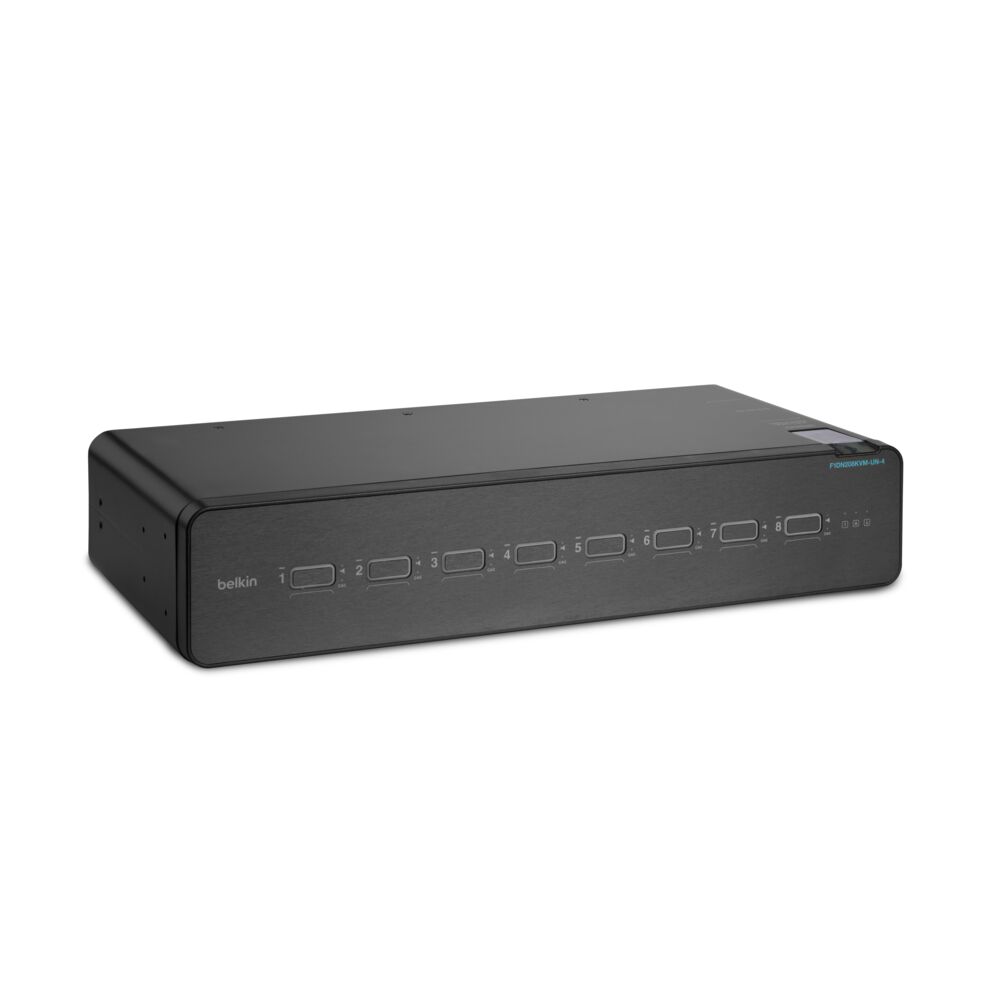

Belkin Universal 2nd Gen Secure KVM Switch
Features
- Designed for NIAP Protection Profile PSD 4.0 Compliance
- Combo connector video support for up to 4K (3840×2160), @60hz refresh
- Compatible with the Belkin Secure KVM Remote Control with Integrated Keyboard (Optional)

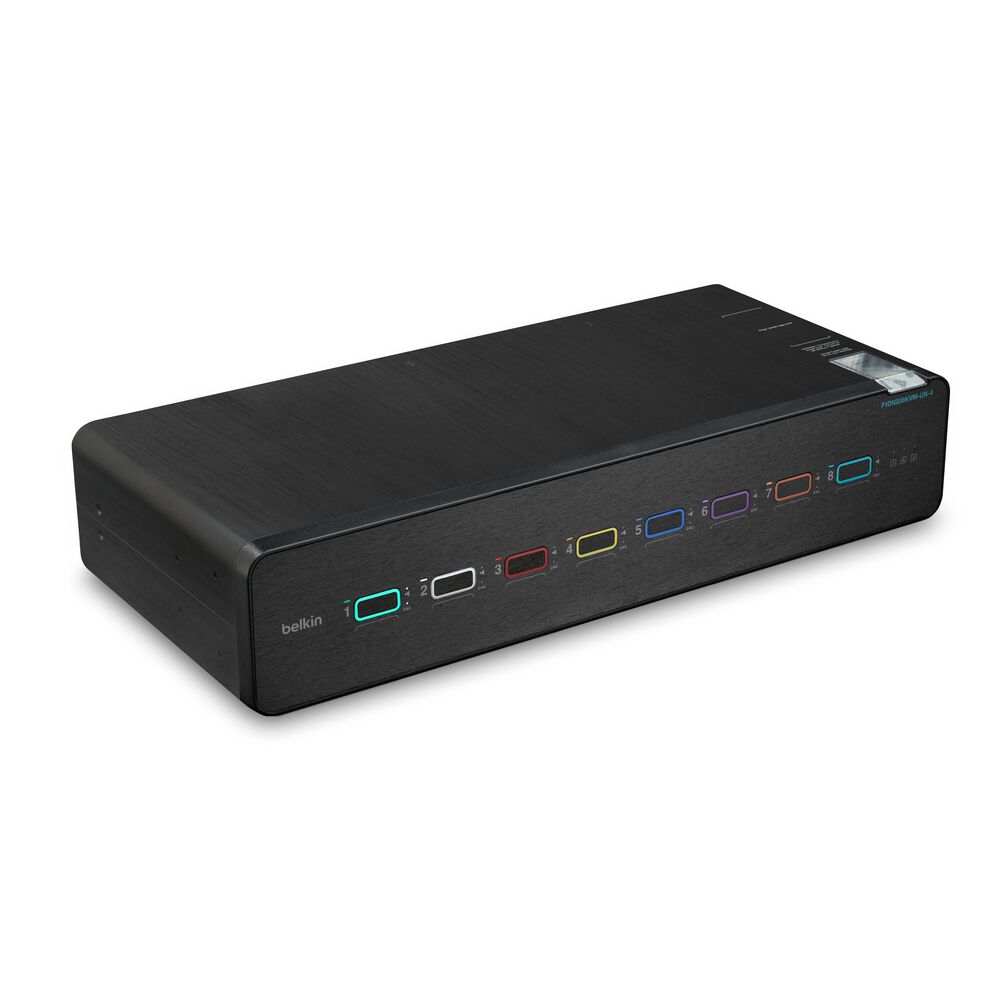

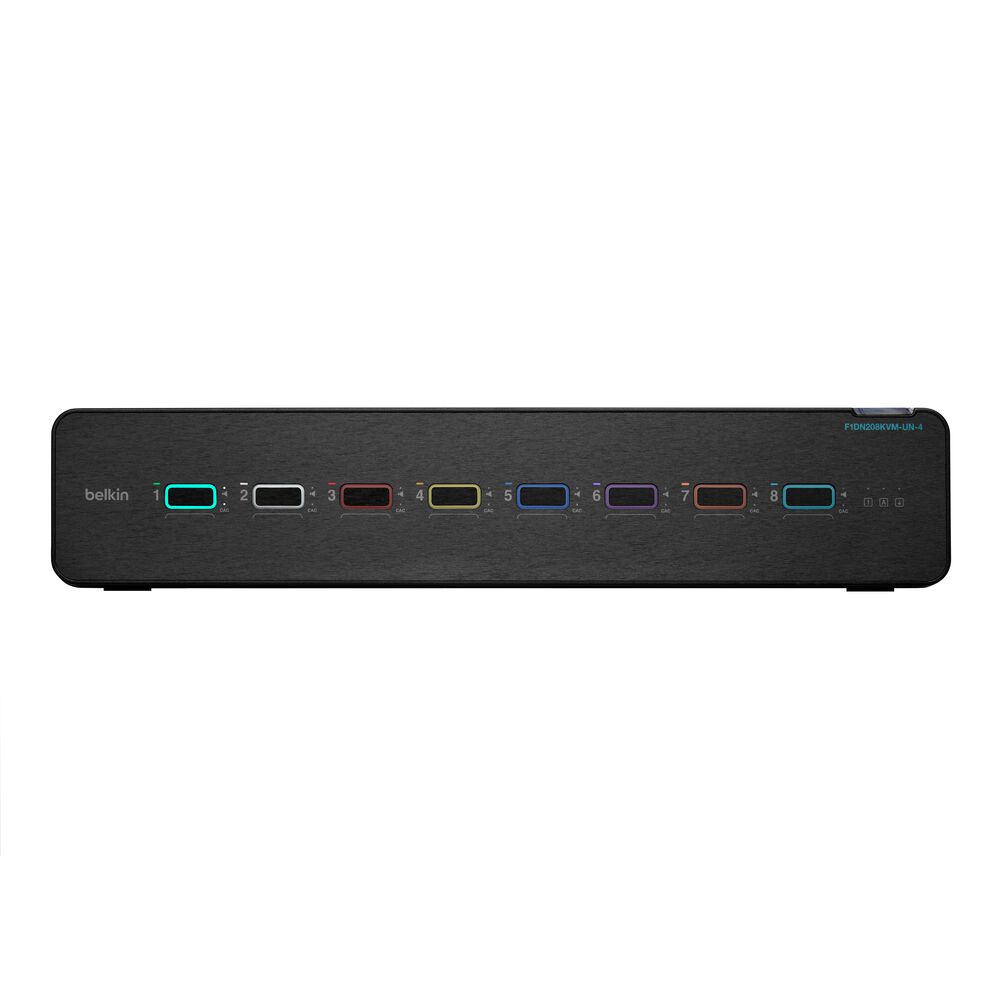

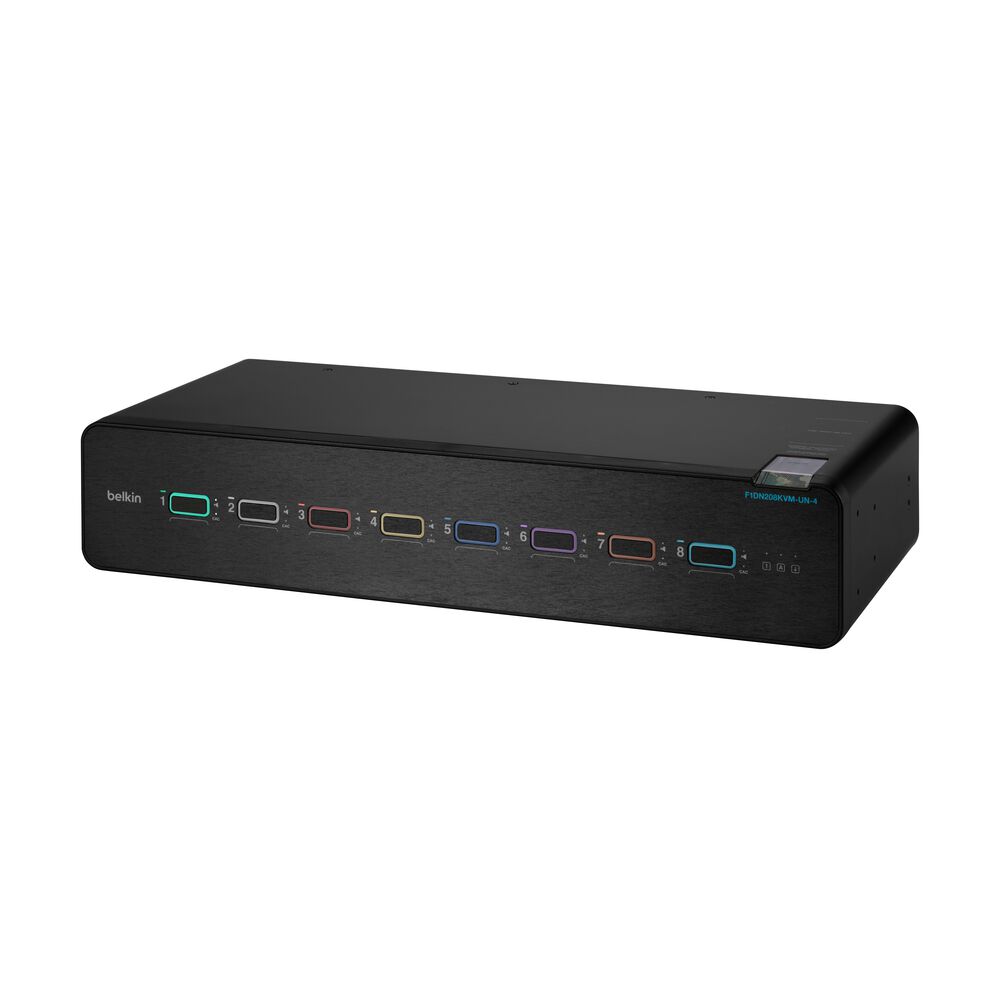

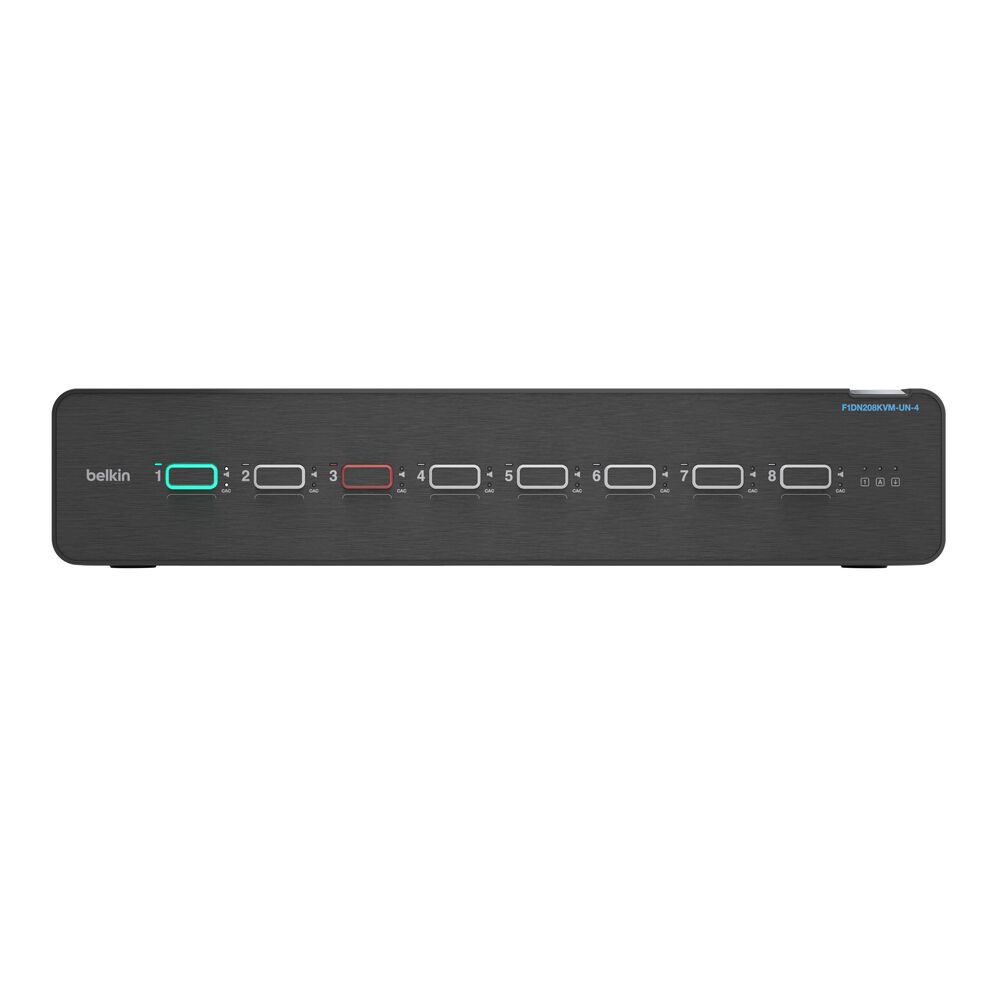

- Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
- Extrusion form factor that supports an under-counter mount (Optional)
- Supports TAA combo and video cables for easy deployment
- Supports up to eight host computers
- Supports two displays for the user
- CAC and Audio freeze functionality
- Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
- Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
- Display security: Protected display interface prevents data leakage via the monitor
- Analog audio via 3.5mm jack with ultrasonic audio filtering
- Peripheral management: USB device detection prevents unauthorized peripheral usage
- Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
- Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
- Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport
Compatibility
- Black
What’s in the Box
- Belkin F1DN208KVM-UN-4 Secure Universal 2nd Gen 8-Port, Dual Monitor Switch
- 12V, 2.5A Universal Power Supply with Worldwide Adapters
- Port Naming Labels
- Rack mount adaptors
- Quick Start Guide and Compliance Documentation
Specifications
- Brand: Belkin
- Manufacturer Part Number: F1DN208KVM-UN-4
- Dimensions: 5.5 x 21 x 14.2 in
- Weight: 14.55 lb
- AC Plug Style: Worldwide Power Cord with Interchangable Mains Connector
- Certifications: FCC Class A UL CE RoHS ICES RCM
- Console Ports: 1, Dual Monitors
- Display Connection: DP/HDMI
- Display Type: DP/HDMI
- Form Factor: Desktop – Rack Mount
- Host Ports: 8
- Housing Type: Formed Sheet Steel
- Indicator Light Status: Port Selected EDID Keyboard Mouse
- Keyboard Input: 1
- Keyboard/Mouse Connections: 2
- Keyboard Type: USB
- KVM Maximum Resolution Supported: 4K@60hz
- Local Console Interfaces: 1, Dual Monitors
- Maximum Resolution: 4K@60hz
- Mouse Input: 1
- Mouse Type: USB
- PC Ports: 8
- Power Rating: 12VDC 4.0A
- Power Supply Included: Yes
- Power Supply Type: Internal
- Remote Control Included: No
- Supported Audio Formats: Analog via 3.5mm
- Supported Video Formats: DP/HDMI
- TAA Compliant: Yes
- Input Voltage (AC): 100-240
- AC Plug Style: IEC Female

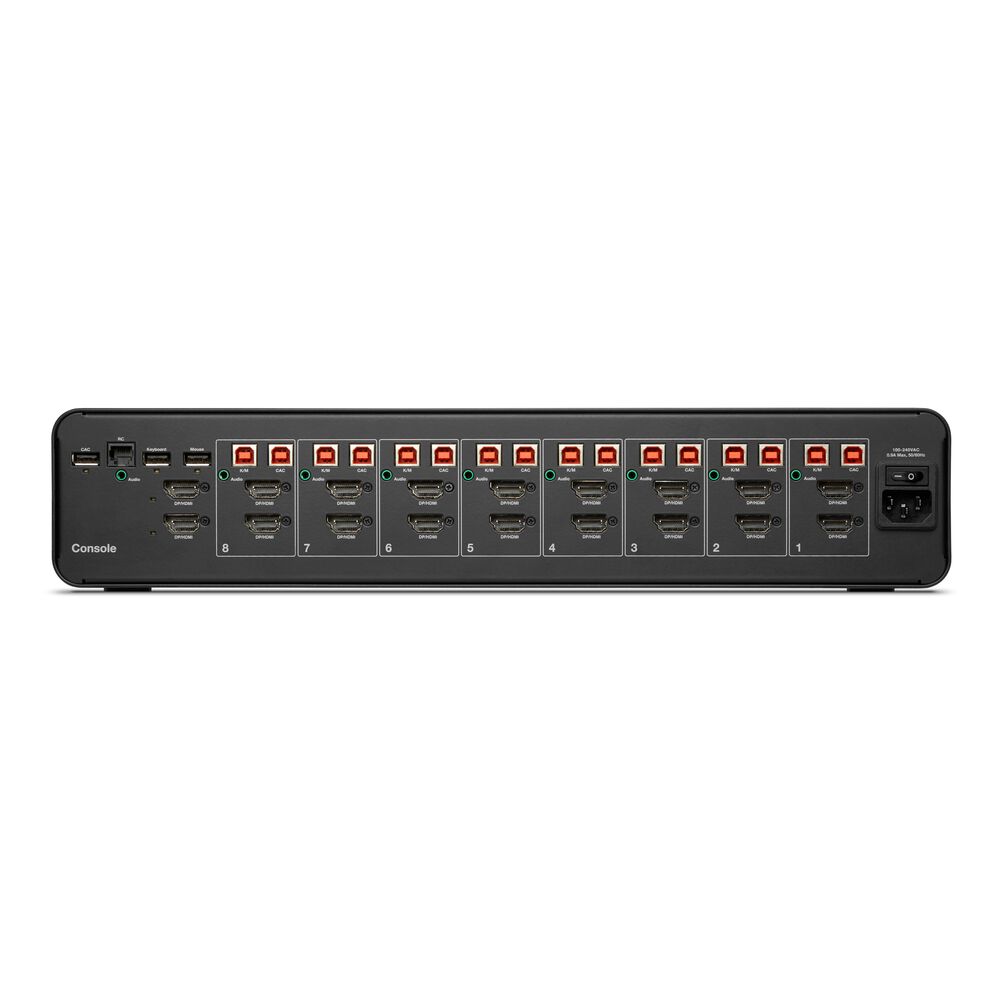

- Ports: CaC/DPP, Computers, Keyboard, Monitors, Mouse, Remote
- Category: Belkin Products
Purchase from BCI Imaging Supplies
Order the Belkin Universal 2nd Gen Secure KVM Switch, 8-Port Dual Head w/ CAC – Black from BCI Imaging Supplies for business, education, government, and professional purchasing. Contact BCI for quantity pricing, procurement assistance, and compatibility questions.
