Description

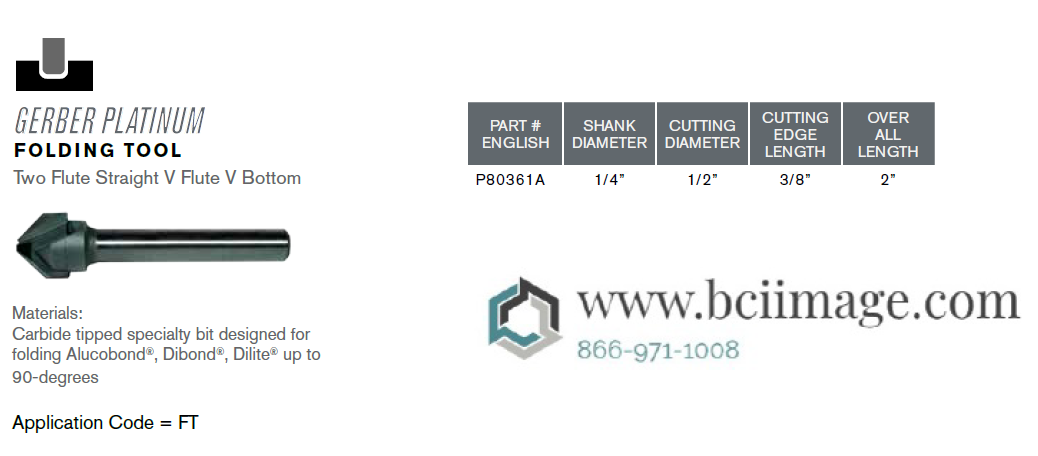

Gerber Routing Bits Gerber Platinum FT 1/4″ 1/2″ 3/8″ 2″ P80361A
Gerber Routing Bits Shank Diameter/Cutting Diameter/Cutting Edge Length/Overall Length
Gerber Routing Bits
Gerber Platinum Specialty Bits
Gerber Platinum Specialty bits take the guesswork out of choosing the correct bit for a specific substrate. Gerber Platinum bit descriptions include an application code which identifies materials and applications for which the bit is most suited. The application code is etched into the shank of the bit, along with the part number, for easy identification once the bit has been removed from its sleeve
Application Reference Chart for Gerber Platinum bits
AW
Aluminum & Wood
1-Flute Upcut O Flute for Alucobond®, Diond®, Dilite®, Hardwood, Softwood, Non-FerrousMetals (Aluminum, Brass, Copper)
GP
General Purpose
1-Flute Upcut Super O Flute for Hard and Soft Plastic, Hard and Soft Woods, Wood andPlastic Composites.
HPF
Hard Plastic & Foam
1-Flute Upcut O Flute for Solid Surface (Avonite, Corian®), Cast Acrylic
SPF
Soft Plastic & Foam
1-Flute Upcut O Flute for PVC Foam (Celtec, Trovicel, Sintra, Kometex), HDU(Signfoam, Precision Board™), Extruded Acrylic, Styrene, Polycarbonate (Lexan), HDPE(Polycarve)
LV
Laminates and Veneers
Produces clean top and bottom edges on single and double-sided laminated substrates. For Hardwood, Softwood, Wood Composites (MDO, MDF, Plywood, Particle board) See footnotes for more information.
APS
All Purpose Straight
1-Flute Straight for Substrates with thin laminates, foam boards (clay coated paper andstyrene surfaces; Fome-Cor, Gatorfoam, Gatorplast )
F
Foams (Special Long)
2-Flute Upcut Specially designed for thick foams and soft plastics from 1-1/4” to 2-1/4”. HDU (Precision Board™, Signfoam)
APC
All Purpose Cleanout
2-Flute Upcut Bottom Surfacing Produces a clean bottom finish with a .002” radius insidebottom edge. HDPE (Polycarve), Aluminum, Woods, Solid Surface
FT
Folding Tool
2-Flute Straight V Flute V Bottom Carbide tipped specialty bit designed for foldingAlucobond®, Diond®, Dilite® up to 90-degrees.
3DM
3D Modeling
2-Flute Upcut Ballnose for three-dimensional modeling. Advanced grind technologyproduces a superior cut in plastics, woods composites and aluminum.
