Orafol ORACAL 8810-56 Ice Blue Frosted Glass Cast Film

Description

Orafol ORACAL 8810-56 Ice Blue Frosted Glass Cast Film
8810-056 Ice Blue Frosted Glass Cast Film
ORACAL® 8810 FROSTED GLASS CAST FILM

Description

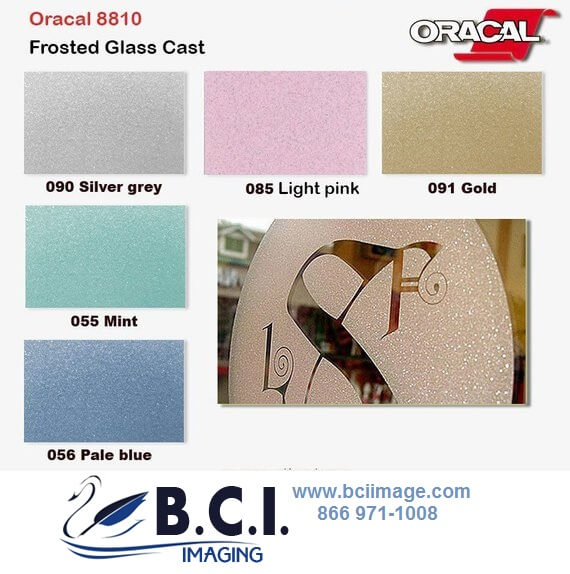

3-mil, frosted glass, cast PVC film for high quality glass decoration. The reduced gloss and the rough surface prevent
undesired reflection. Available in 5 colors – silver grey, gold, mint, light blue and soft pink.
Release Liner
4-mil polyester film
Adhesive
Clear, solvent-based, permanent adhesive
Area of Use
Developed for long-term indoor and outdoor design with sparkling effects on glass and glass like shop windows and doors.
Suitable for use on plotter cutting systems.
Technical Data
Thickness (without liner and adhesive) 3 mil
Dimensional Stability (FINAT TM-14) Adhered to steel, no shrinkage in cross direction;
In length, <.004” Temperature Resistance Adhered to aluminum, -40°F to +194°F, no variation Fire Behavior (DIN 75200) Fire Rating Adhered to steel, self-extinguishing ASTM E 84-07 Class “A” Adhesive Power (FINAT TM-1, after 24 h, average) Adhered to glass: 3.7 lb/in Adhered to acrylic: 3.7 lb/in Tensile Strength (DIN EN ISO 527) Along: Min. 9 MPa Across: Min. 9 MPa Elongation at Break (DIN EN ISO 527) Along: Min. 40% Across: Min. 40% Seawaterability (DIN 50 021) Adhered to aluminum, after 48h/73°F, no variation Shelf Life (68°F/50% relative humidity) 2 years Minimum Life Expectancy (based on accepted application procedures on vertical surfaces) 7 years Minimum Application Temperature 46°F (dry application) Available Lengths Available Widths 150’ (50-yard) and 30’ (10-yard) 15” (punched), 24”, 30”, 48” Recommended Application Tapes ORATAPE® HT55
